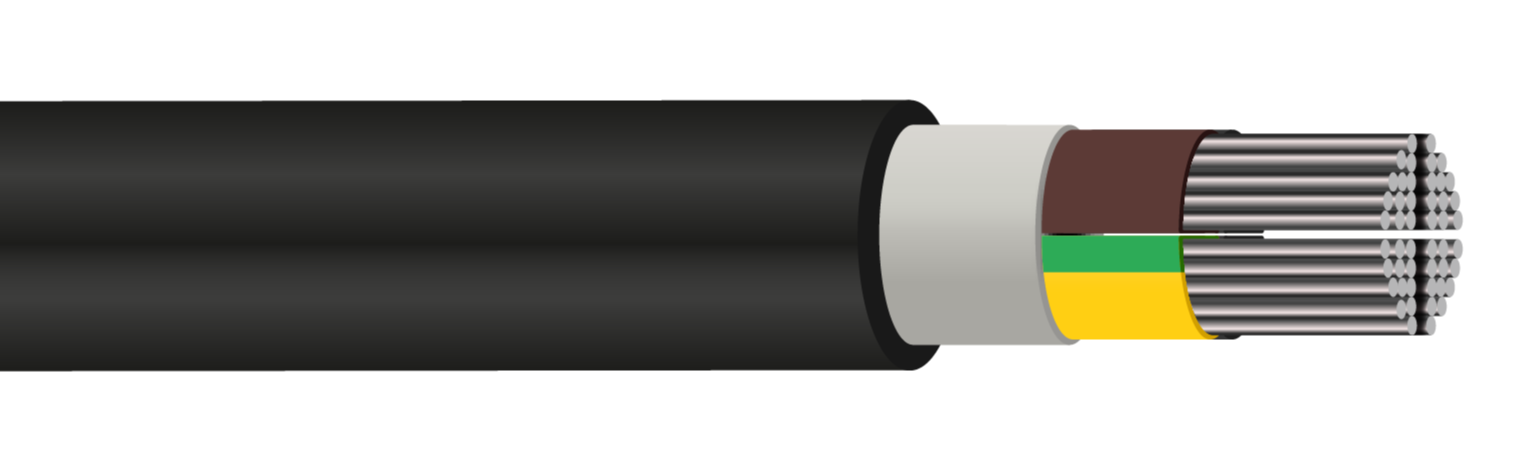

NAYY-J Aluminium Conductor PVC PVC 0.6/1kV Cable - 6mm² to 630mm²

Description

NAYY cables are Low Voltage 0.6/1kV European aluminium conductor power distribution cables. They are an alternative to copper conductor NYY cables offering both reductions in weight and in initial cost.  NAYY are available with earth cores (J) or without (O). They are mostly used within the Renewable Energy industries and in particular within Solar farms .

The cables are unarmoured with aluminium cores, Polyvinyl Chloride (PVC) insulation and PVC outer sheath making them suitable for fixed installations in buildings, in free air and buried within conduit or trunking.

Key Features

•
  Voltage Rating 600/1000 Volts
•
  Minimum Bending Radius Fixed: 12 x Overall Diameter
  Flexing:15 x Overall Diameter
•
  Flame Retardancy BS EN/IEC 60332-1-2
•
  Temperature Limits Temperature Range: -5°C to +70°C

Construction

• Conductor: Class 1 solid or class 2 stranded aluminium
• Insulation: Polyvinyl Chloride (PVC)
• Outer Sheath: Polyvinyl Chloride (PVC)
• Sheath Colour: Black

Standards

• IEC 60502-1
• VDE 0276-603
• BS EN/IEC 60332-1-2
• BS EN/IEC 60228
• HD 603

Core Colours
