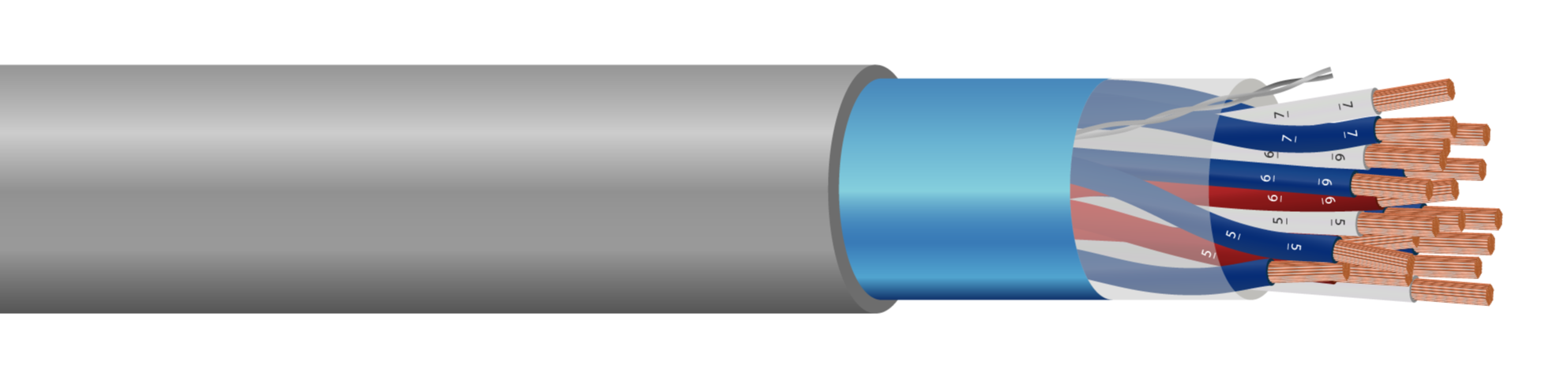

NF M 87 - 202 EGFA

Description

EGFA cables are instrumentation cables featuring double steel tape armour and are used for the transmission of AC or DC analogue signals within the chemical, and petrochemical sites. They are suitable for underground burial in industrial environments where enhanced mechanical protection is needed.

These cables are heavily used in petroleum and petrochemical sectors. The cable has a flame retardant,  oil and hydrocarbon resistant PVC sheath. EGFA Cables are available in pairs, triple and quad formations.

Key Features

•
  Voltage Rating 300/500 Volts
•
  Minimum Bending Radius 15 x Overall Diameter
•
  Flame Retardancy BS EN/IEC 60332-1
  BS EN/IEC 60332-3-24
•
  Temperature Limits Installation Temperature: -5°C to +50°C
  Operating Temperature: -30°C +90°C

Construction

• Conductor: Class 1 solid copper conductor
  Class 2 stranded copper conductor
• Insulation: Polyvinyl Chloride (PVC)
• Separator: Polyester Tape (PET)
• Overall Tape Screen: Aluminium/Polyester Tape Screen (AL/PET)
• Bedding: Polyvinyl Chloride (PVC)
• Armour: Double Steel Tape
• Outer Sheath: Polyvinyl Chloride (PVC)
• Sheath Colour: Blue

Standards

• BS EN/IEC 60332-3-24
• NF M 87-202
• NF EN 60228
• BS EN/IEC 60332-1

Core Colours
