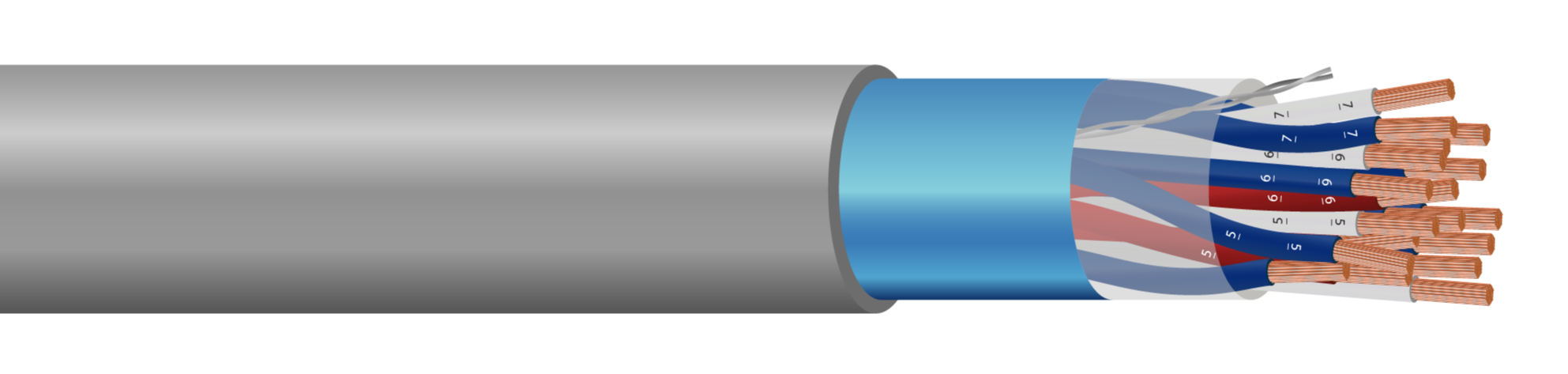

NF M87-202 EGSF

Description

EGSF NF M87-202 are copper instrumentation cables are designed for for the transmission of AC or DC analogue signals. They have a voltage rating of 300/500V. Available in pairs, triples and quads  in a collective Aluminium/PET screen. These cables are flame retardant, and resistant to UV, mineral oil and hydrocarbons. They are manufactured to NF M87-202 which is the French Standard (Norme Française) covering armoured and unarmoured instrumentation cables. The cables are designed for connecting electrical circuits and providing communication services in process plants and are especially suitable for the petroleum and petrochemical industry.

Key Features

•
  Voltage Rating 300/500 Volts
•
  Minimum Bending Radius 10 x Overall Diameter
•
  Flame Retardancy BS EN/IEC 60332-1
  BS EN/IEC 60332-3-24
•
  Temperature Limits Installation Temperature: -5°C to +50°C
  Operating Temperature: -30°C +90°C

Construction

• Conductor: Class 1 solid copper conductor
  Class 2 stranded copper conductor
• Insulation: Polyvinyl Chloride (PVC)
• Separator: Polyester Tape (PET)
• Overall Tape Screen: Aluminium/Polyester Tape Screen (AL/PET)
• Outer Sheath: Polyvinyl Chloride (PVC)
• Sheath Colour: Blue

Standards

• BS EN/IEC 60332-3-24
• NF M 87-202
• NF EN 60228
• BS EN/IEC 60332-1

Core Colours
