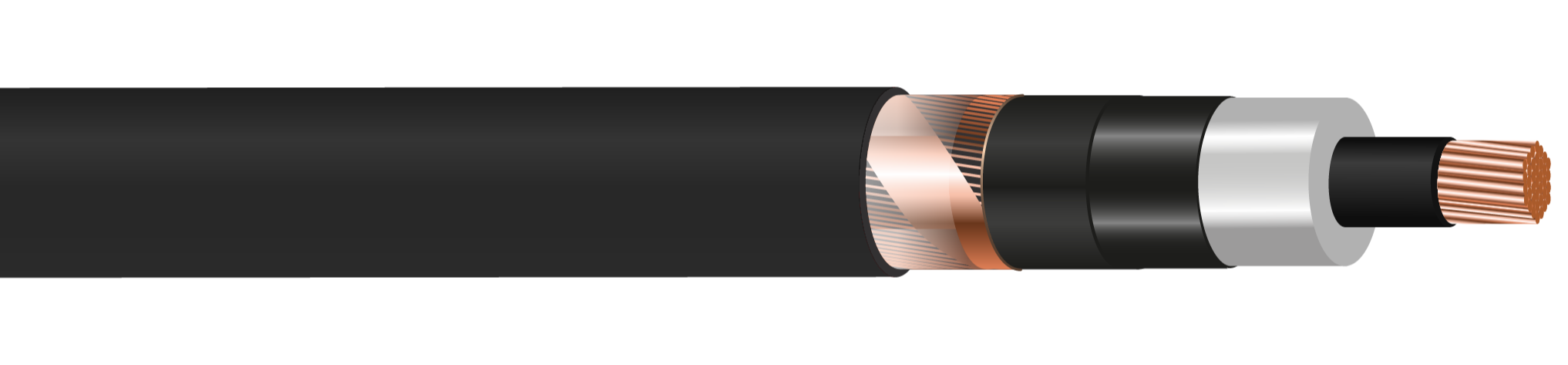

NGED 19/33 (36)kV Single Core Copper Power Cable 185mm² to 800mm²

Description

33KV Single Core Power Cable. National Grid (NGED) approved specification medium voltage aluminium power cable for connections from electrical grid to sub-main developments. Suitable for power networks, underground, outdoors and installation in cable ducting.

Key Features

•
  Voltage Rating 19/33 (36)kV
•
  Minimum Bending Radius 20x Overall Diameter
•
  Temperature Limits Temperature Range: 0°C to +90°C

Construction

• Conductor: Class 2 stranded copper
• Conductor Screen: Bonded semi conductive material
• Insulation: Cross Linked polyethylene (XLPE)
• Insulation Screen: Semi-conductive material (bonded)
• Longditudinal Waterblocking: Semi-conductive swellable tape
• Metallic Screen: Copper wires with equalising tape
• Water Blocking: Longitudinal Waterblocking Swellable Tapes
• Outer Sheath: Medium Density Polyethylene (MDPE)
• Sheath Colour: Black

Standards

• DNO Cable approved for NGED use.
• BS 7870-4.10
• BS EN/IEC 60228
