(N)TMCGCWÖU12/20 (24kV)

Description

(N)TMCGCWÖU cable is Medium voltage, class 5 single core cable with added semiconductive material between each of the Core, the insulation and the earth conductor and surrounded with a rubber outer sheath. It is usually used for short-length connections of transformers and switchgear, as well as power cables on mining equipment and alongside conveyor belts.

(N)TMCGCWÖU comes in 8 different power ranges. from 3.6/6kV to 26/45kV

Key Features

•
  Voltage Rating 12/20 (24kV)
•
  Minimum Bending Radius Fixed: 6 x overall diameter
•
  Oils, Greases and Chemicals Resistant Yes
•
  UV/Ozone Resistance Yes
•
  Flame Retardancy IEC/EN 60332-1-2
•
  Temperature Limits Fixed: -50°C to +90°C

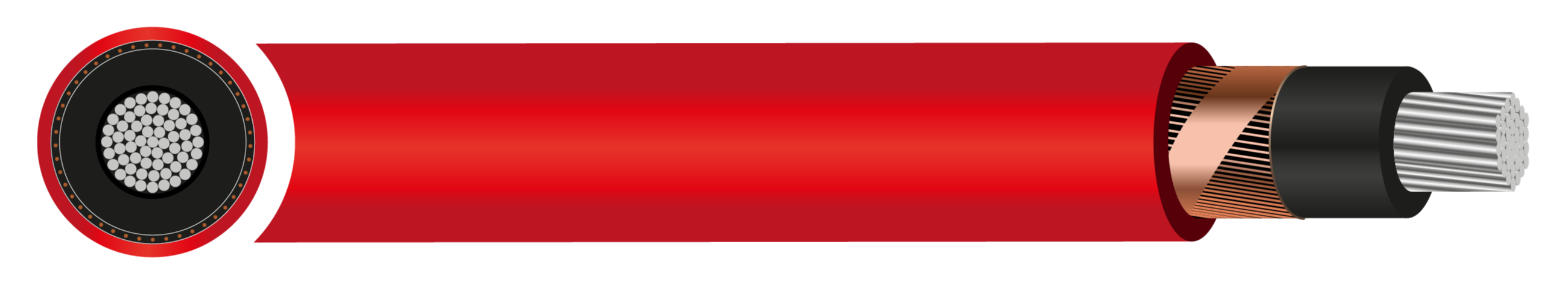

Construction

• Conductor: Tinned copper conductor
• Conductor Screen: Semi-Conductive material
• Insulation: Quality Rubber Compound, according to VDE 0207 Part 20
• Insulation Screen: Inner and outer semi-conductive rubber layer on the insulation
• Concentric Conductor: Copper wires with counter helix of copper tape
• Outer Sheath: Quality rubber compound, according to VDE 0207 part 21
• Sheath Colour: Red

Standards

• IEC 60228
• BS EN/IEC 60332-1-2
• VDE 0250 PT812
• VDE 0295
• UV Resistant: ISO 4892-2
• Oil resistant: IEC 60811-404
• Ozone resistant: IEC 60811-403
