(N)TMCGCWÖU14/25 (30kV) Cable - 25mm² to 630mm²

Description

(N)TMCGCWÖU cable is Medium voltage, class 5 single core cable with added semiconductive material between each of the Core, the insulation and the earth conductor and surrounded with a rubber outer sheath. It is usually used for short-length connections of transformers and switchgear, as well as power cables on mining equipment and alongside conveyor belts.

(N)TMCGCWÖU comes in 8 different power ranges. from 3.6/6kV to 26/45kV

Key Features

•
  Voltage Rating 14/25 (30kV)
•
  Minimum Bending Radius Fixed: 6 x overall diameter
•
  Flame Retardancy IEC/EN 60332-1-2
•
  Temperature Limits Fixed: -40°C to +80°C
  Flexing: -25°C to +80°C
  Maximum Short Circuit Temperature: +250ºC

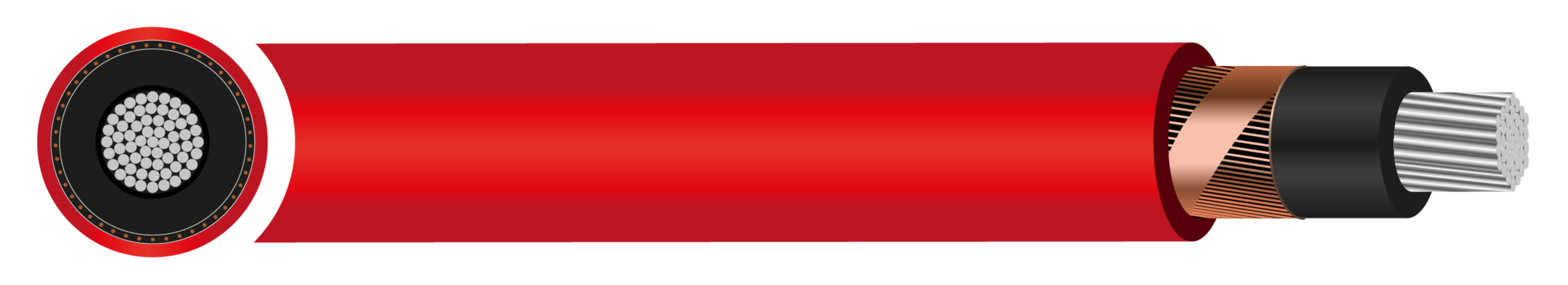

Construction

• Conductor: Class 5 tinned copper
• Conductor Screen: Semi-Conductive material
• Insulation: Quality Rubber Compound, according to VDE 0207 Part 20
• Insulation Screen: Inner and outer semi-conductive rubber layer
• Concentric Conductor: Copper wires with counter helix of copper tape
• Outer Sheath: Quality rubber compound, according to VDE 0207 part 21
• Sheath Colour: Red

Standards

• Ozone resistant: BS EN/IEC 60811-403
• Oil resistant: BS EN/IEC 60811-404
• UV Resistant: ISO 4892-2
• VDE 0295
• VDE 0250 PT812
• BS EN/IEC 60332-1-2
• IEC 60228
