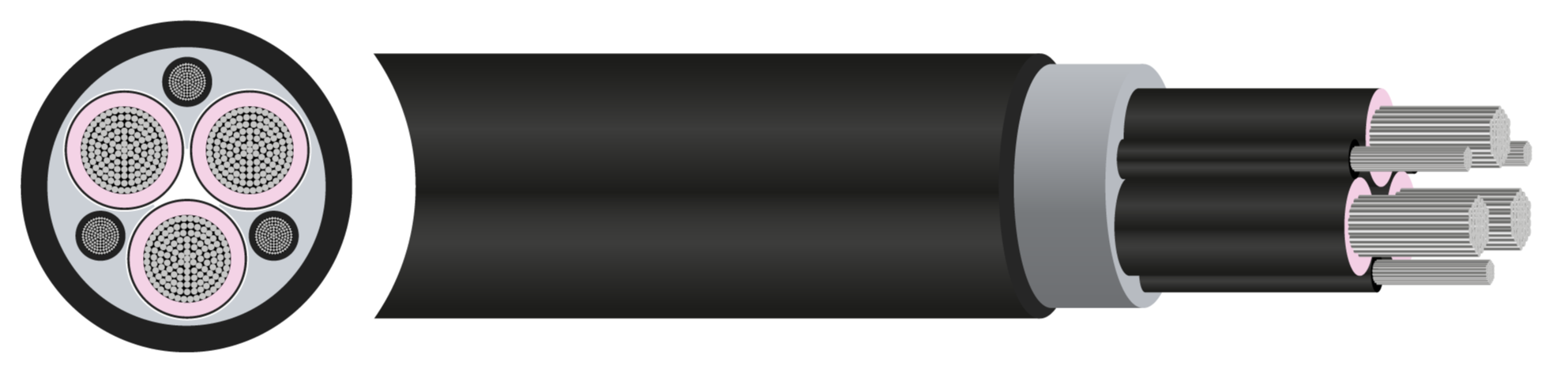

(N)TSCGEWÖU - 8.7/15kV and 12/20kV Submersible Cable - 25mm² to 95mm²

Description

Flexible supply cable for use in permanent immersion in salty and brackish water up to 300 metres under high mechanical stresses. For applications such as pumps, dredgers and floating docks. It is suitable for trailing operations of opencast mining equipment. Suitable for indoor and outdoor applications.

Key Features

•
  Voltage Rating 8.7/15 (17.5)kV
  12/20 (24)kV
•
  Minimum Bending Radius Fixed: 6 x overall diameter
  Flexing: 10 x overall diameter
•
  Flame Retardancy BS EN/IEC 60332-1-2
•
  Temperature Limits Fixed: -40°C to +80°C
  Flexed: -25°C to +80°C

Construction

• Conductor: Class 5 Flexible Tinned Copper
• Conductor Screen: Semi-Conductive Tape
• Inner Semi-Conductor: Semi-Conductive Rubber Layer
• Insulation: Rubber Compound
• Outer Semi Conductor: Semi-Conductive Rubber Layer
• Circuit Protective Conductor: Class 5 tinned copper
• Inner Sheath: Rubber Compound
• Braiding: Anti-torsion polyester braiding
• Outer Sheath: Rubber Compound
• Sheath Colour: Black

Standards

• VDE 0250-813
• BS EN/IEC 60228
• BS EN/IEC 60332-1-2
