NTSCGEWÖW 6kV Torsion Power Cable

Description

Medium voltage cable available in single and three cores suitable for applications under torsional stresses, for energy transmission and loop applications. Due to their make up they are ideal for supplying power from transformers in a wind turbine to the nacelle at the bottom of the tower. The insulation and outer sheath means the cable has a high resistance to Ozone, UV and oil. They are a durable cable able to adapt to large changes in ambient temperature

Key Features

•
  Torsion Resistance ±100°/m
•
  Voltage Rating 3.6/6kV
•
  Minimum Bending Radius 10 x Overall Diameter
•
  Temperature Limits Temperature Range: -40°C to +90°C

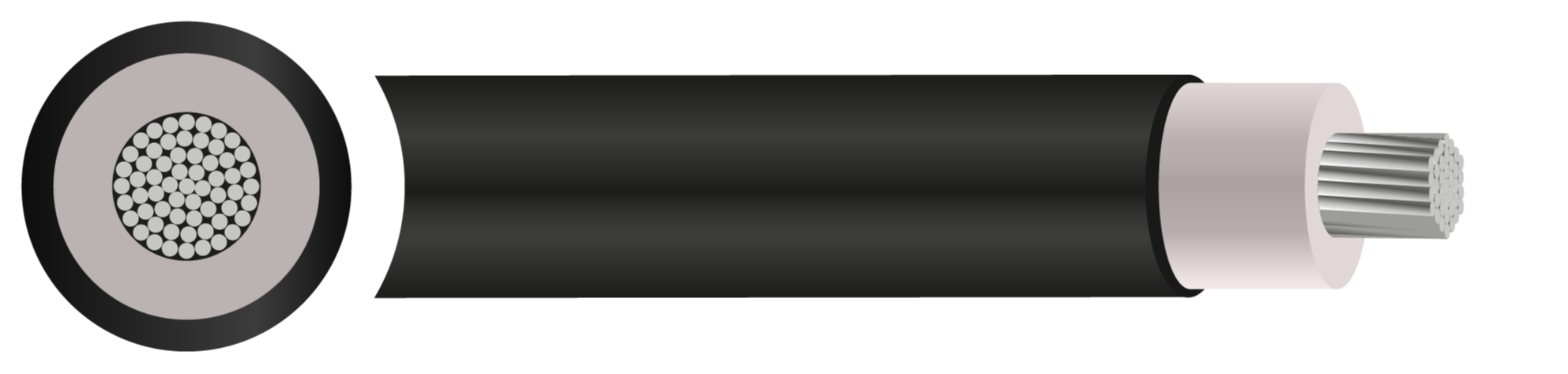

Construction

• Conductor: Stranded tinned copper wires
• Insulation: Ethylene Propylene Rubber (EPR)
• Outer Sheath: ChloroPolyethylene/Polychloroprene (CM/CR)
• Sheath Colour: Black

Standards

• DIN VDE 0295 / IEC 60228
• DIN VDE 0250-813
