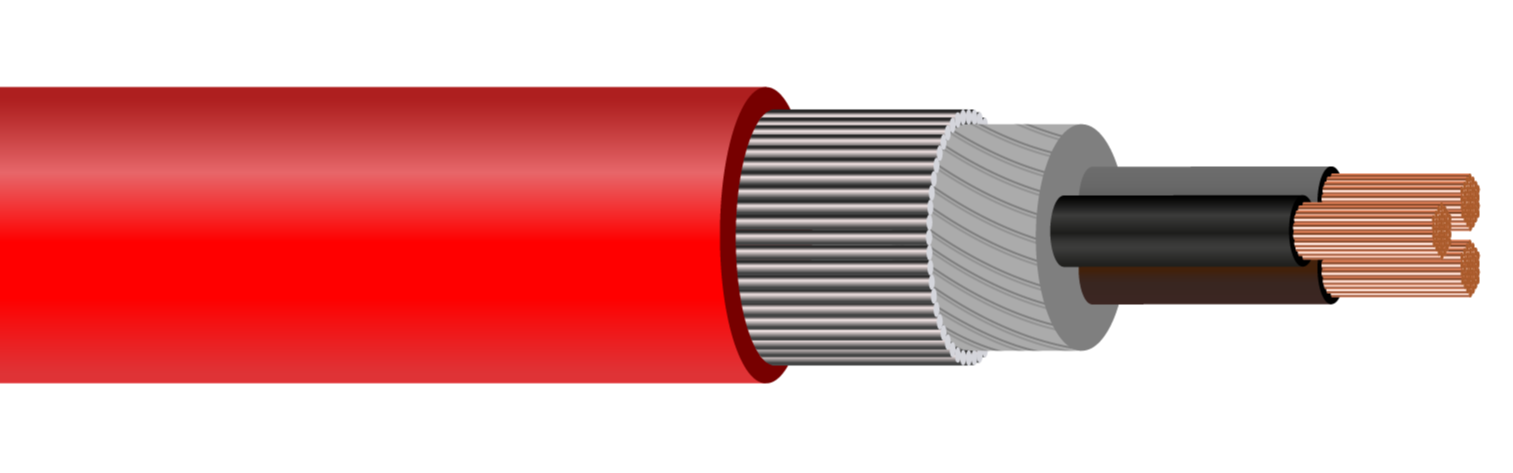

NYFGY 3.6/6kV Cable

Description

NYFGY cables are Medium Voltage cables manufactured to DIN VDE 0271 with copper conductors, PVC insulation and inner sheath, flat steel wire armour and PVC outer sheath. NYFGY cable are specified for a range of fixed applications for power distribution within colder operating environments in
power plants and heavy industrial settings.

NYFGY has an operating temperature range of -5°C to +70°C. due to having PVC insulation. NYFGY cable is specified where there is potentially a high risk of mechanical damage, where critical power must be maintained in power distribution systems. The cable can be installed internally and external and is suitable for direct burial due to the flat steel wire armour which offers mechanical protection.

Key Features

•
  Voltage Rating 3.6/6 (7.2kV)
•
  Minimum Bending Radius 15 x Overall Diameter
•
  Flame Retardancy BS EN/IEC 60332-1
•
  Temperature Limits Temperature Range: -5°C to +70°C

Construction

• Conductor: Class 2 stranded copper conductor
• Insulation: Polyvinyl Chloride (PVC)
• Bedding: Polyvinyl Chloride (PVC)
• Inner Sheath: Polyvinyl Chloride (PVC)
• Armour: Galvanised Steel Wire Armour (SWA)
• Outer Sheath: Polyvinyl Chloride (PVC)
• Sheath Colour: Red

Standards

• BS EN/IEC 60228
• VDE 0271
• BS EN/IEC 60332-1

Core Colours
