RHZ1-2OL-AL - 8.7/15 (17.5) kV Cable - 50mm² to 630mm²

Description

RHZ1-OL, AL is used for medium voltage installations or distribution networks both indoors and outdoors.  It is commonly utilised in large infrastructure projects  for 17.5KV power supply in transformer stations, infrastructure, wind turbines, solar parks, factory plants and data centres.

Key Features

•
  Voltage Rating 8.7/15kV
•
  Minimum Bending Radius 15 x Overall Diameter
•
  Temperature Limits Temperature Range: -20°C to +90°C

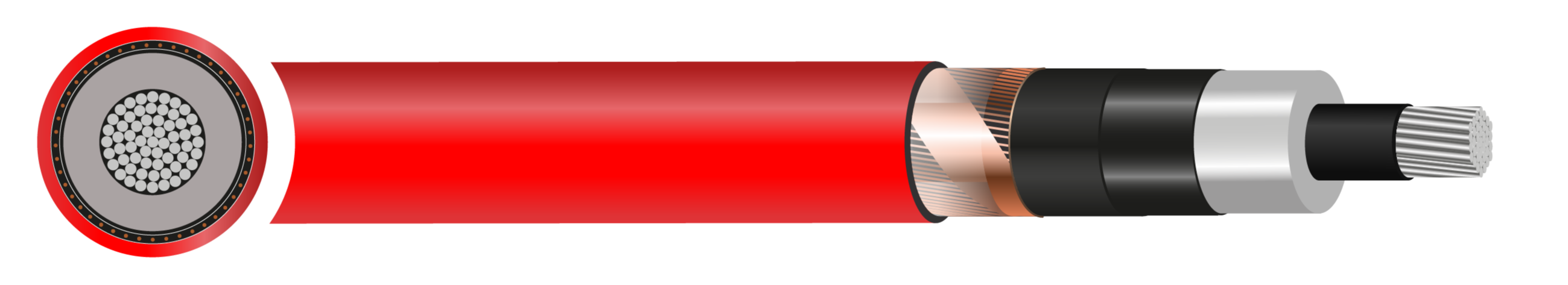

Construction

• Conductor: Class 2 Stranded Aluminium Conductor
• Conductor Screen: Semi-Conductive material
• Insulation: Cross Linked polyethylene (XLPE)
• Insulation Screen: Semi-Conductive material
• Longditudinal Waterblocking: Swellable tapes
• Metallic Screen: Copper wires with equalising tape
• Longditudinal Water Blocking: Swellable tapes
• Outer Sheath: Halogen free polyolefine type DMZ1 acc to 620-1 and type ST7 acc to IEC 60502-2
• Sheath Colour: Red

Standards

• BS EN/IEC 60228
• UNE 211605
• BS EN/IEC 60754-1/2
• HD 605, Subclause 2.2.13
• IEC 60502-2
