RV-K Single Core Copper XLPE PVC Cable 1.8/3kV 50mm² to 630mm²

Description

Single core RV-K 1.8/3kV cable is a low voltage class 5, flexible power distribution cable with a rating of 1.8/3kV. It is made in accordance with IEC 60502-1 with UV resistance to  AENOR Spanish standard UNE 211605

The high flexibility of the RV-K Cable with its Class 5 Copper conductors makes cable it suitable for complex routes as are found in Datacentres and renewables installations. It can be buried or installed in conduit as well as outdoors without requiring additional protection as allowable by various local regulations.

The outer sheath of the RV-K cable is  flame retardant PVC in accordance with UNE/EN/IEC 60332-1 and the XLPE insulation provides an operating temperature range of -40C to +90C. RV-K is compliant to CPR. The RV-K cable is rated AD8 for water resistance. The chemical additive to the PVC outer sheath offers protection against rodents.

Key Features

•
  Voltage Rating 1.8/3kV
•
  Minimum Bending Radius Fixed: 8 x overall diameter
•
  Flame Retardancy BS EN/IEC 60332-1
•
  Temperature Limits Fixed: -40°C to +90°C
  Flexing: -15°C up to +90°C
  Minimum Installation: -10

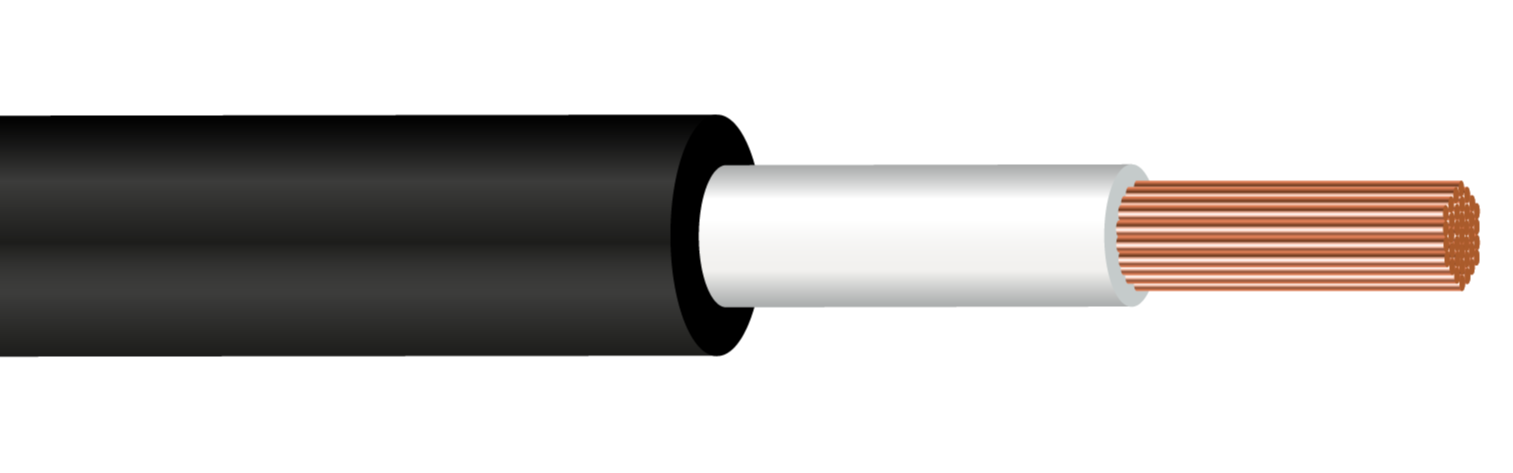

Construction

• Conductor: Class 5 Flexible Copper Conductor
• Insulation: Cross Linked polyethylene (XLPE)
• Outer Sheath: Polyvinyl Chloride (PVC) Type ST2
• Sheath Colour: Black

Standards

• UNE 211605
• IEC 60332-1
• BS EN/IEC 60502-1
• BS EN/IEC 60228
• AD8 water resistance
• HD 603
