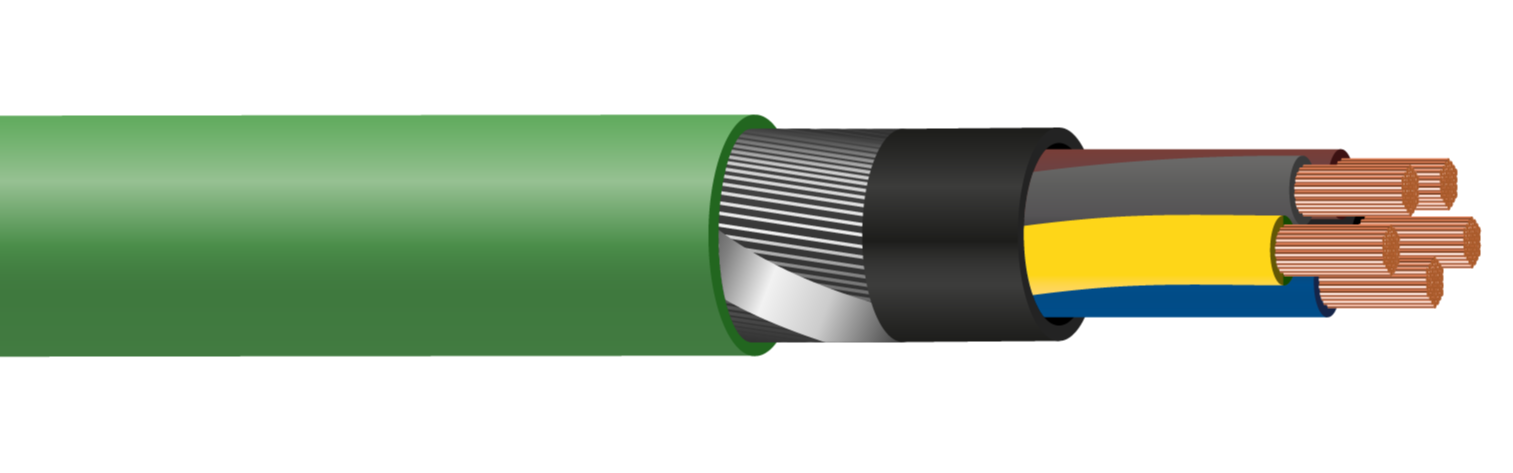

RZ1MZ1-K XLPE SWA LSZH Cable 1.5mm² to 240mm²

Description

RZ1MZ1-K is a power and general wiring cable with a voltage rating of 600/1000V, manufactured to Spanish standard UNE-21123-4. It is widely used within the Oil, Gas & Petrochemical, and Distribution and Power Network industries. RZ1MZ1 has a low smoke zero halogen thermoplastic polyolefin insulation and outer sheath. This makes the cable suitable for installations under CPR 2017 where protection of the general public and sensitive equipment is a priority in the event of fire.

It has a flattened galvanised steel wire armour for mechanical protection, making it suitable for both internal and external installations, including direct burial. The cable has class 5 stranded copper conductors making it considerably more flexible than other LSZH armoured mains cables.

Key Features

•
  Voltage Rating 600/1000 Volts
•
  Minimum Bending Radius 12 x Overall Diameter
•
  Flame Retardancy BS EN/IEC 60332-1
  BS EN/IEC 60332-3
•
  Temperature Limits Temperature Range: -40°C to +90°C

Construction

• Conductor: Class 5 flexible stranded copper conductor
• Insulation: Cross Linked polyethylene (XLPE)
• Bedding: LSZH (Low smoke Zero Halogen)
• Bedding: Low Smoke Zero Halogen (LSZH)
• Armour: Steel Wire Armour (SWA)
• Outer Sheath: Low Smoke Zero Halogen (LSZH)
• Sheath Colour: Green

Standards

• BS EN/IEC 60754-1/2
• BS EN/IEC 61034-1/2
• BS EN/IEC 60332-3
• BS EN/IEC 60332-1
• UNE 21123-4
• HD 603
• BS EN/IEC 60228

Core Colours
