S-3GSHCÖU 0.6/1kV Cable

Description

S-3GSHCÖU is a single core copper cable with rubber insulation which is extensively used in the renewable energy sector in wind turbines. The cable is manufactured to withstand medium mechanical stress.  The CPE outer sheath provides low water absorption and high resistance to ozone and weathering making it ideal for outdoor use in wind turbines.

Key Features

•
  Voltage Rating 600/1000 Volts
•
  Minimum Bending Radius Fixed: 6 x overall diameter
  Flexing: 10 x overall diameter
•
  Flame Retardancy BS EN/IEC 60332-1
•
  Temperature Limits Temperature Range: -40°C to +90°C

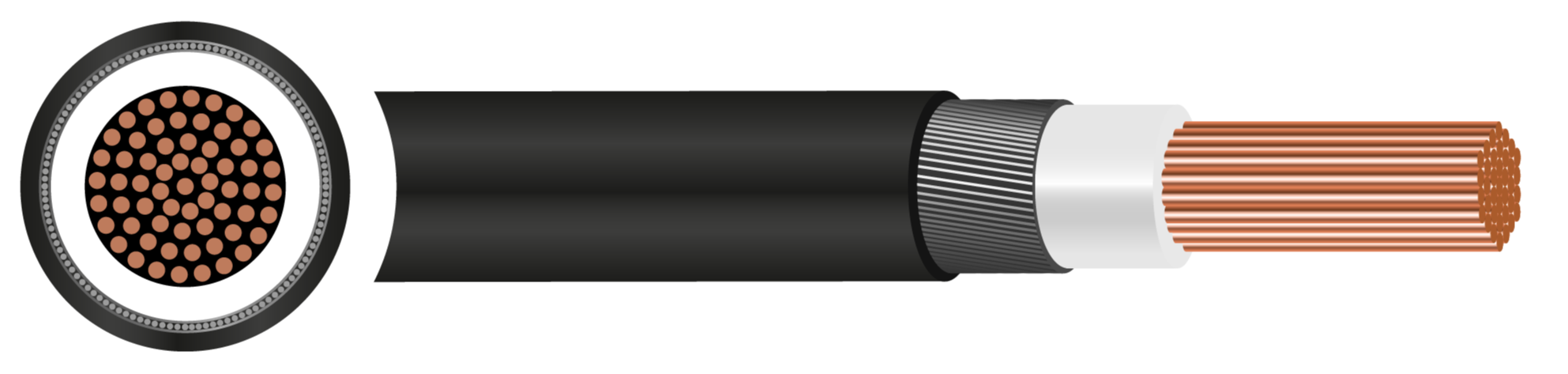

Construction

• Conductor: Class 5 flexible, stranded copper
• Insulation: Rubber Compound
• Armour: Tinned copper wire braid (TCWB)
• Outer Sheath: Chlorinated Polyethylene (CPE)
• Sheath Colour: Black

Standards

• BS EN/IEC 60228
• UL-758
• DIN VDE 0250
• BS EN/IEC 61034
• BS EN/IEC 60754
