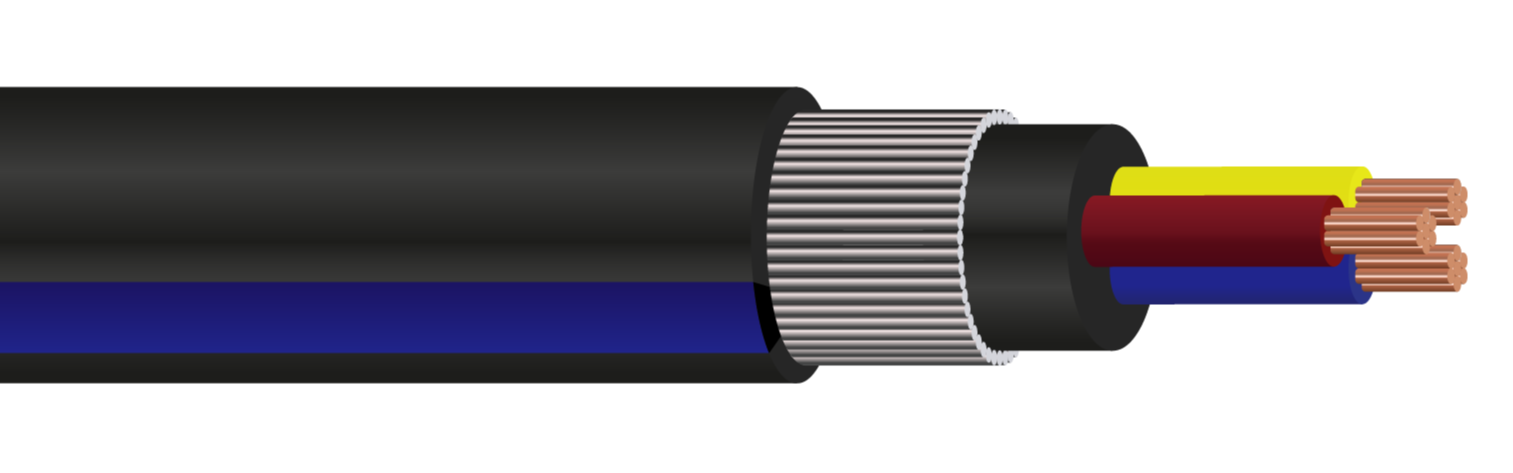

SANS 1507-3 PVC-SWA-PVC Low Voltage Mains Cable, 25mm² to 240mm²

Description

SANS 1507-3 is a copper PVC sheathed low voltage power transmission cable with a rated voltage of 0.6/1kV meeting South African national standards. The SANS 1507-3 cable is armoured with PVC insulation and has a temperature range of -10°C to +70°C. To differentiate it from the SANS 1507-4 XLPE insulated 90°C cable it has a black PVC outer sheath with a blue stripe. They are commonly specified in wide range of industrial projects, in mining, petrochemical, and infrastructure environments.  Due to the steel wire armour providing mechanical protection the cable is suitable for direct burial, burying in ducts and laying in racking and tray in internal and external installations.

Key Features

•
  Voltage Rating 600/1000 Volts
•
  Minimum Bending Radius 8 x Overall Diameter
•
  Flame Retardancy BS EN/IEC 60332-1-2
•
  Temperature Limits Temperature Range: -10°C to +70°C

Construction

• Conductor: Stranded copper conductor
• Insulation: Polyvinyl Chloride (PVC)
• Bedding: Polyvinyl Chloride (PVC)
• Armour: Steel Wire Armour (SWA)
• Outer Sheath: Polyvinyl Chloride (PVC)
• Sheath Colour: Black with Blue stripe

Standards

• IEC 60332-1-2

Core Colours
