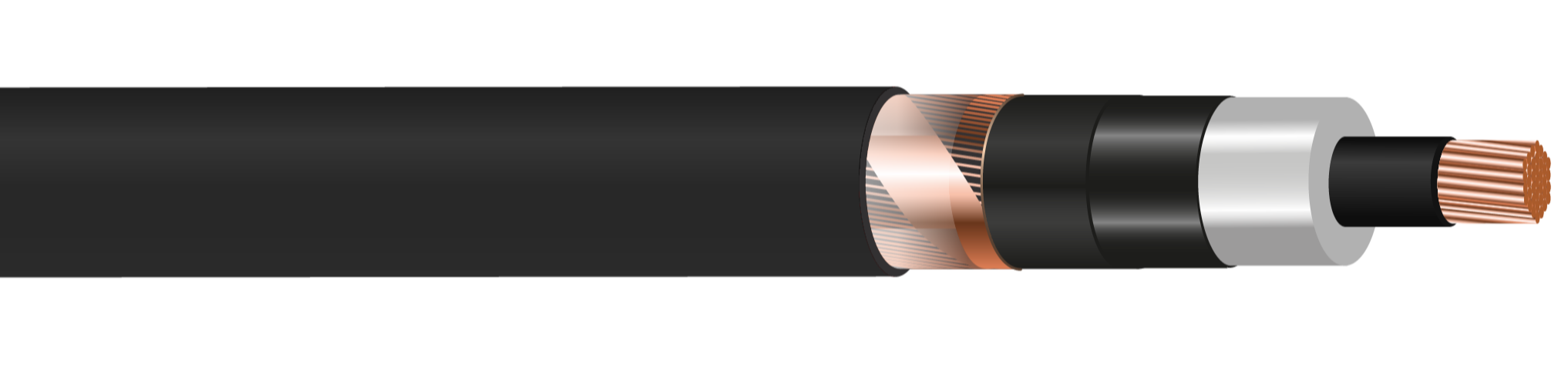

Scottish Power Energy Networks (SPEN) Approved Single Core Power Cable - 33kV, XLPE, MDPE - 150mm² to 400mm²

Description

Medium voltage single core aluminium power cable designed to meet Scottish Power Energy Networks (SPEN) technical requirements. Manufactured by G81-accredited suppliers, this 33kV XLPE insulated, MDPE sheathed cable is intended for use within electricity distribution networks, providing compliant connections between existing grid infrastructure and new sub-main developments.

Key Features

•
  Voltage Rating 19/33 (36)kV
•
  Temperature Limits Temperature Range: 0°C to +90°C

Construction

• Conductor: Class 2 Stranded Aluminium Conductor
• Conductor Screen: Bonded semi conductive material
• Insulation: Cross Linked polyethylene (XLPE)
• Insulation Screen: Semi conducting compound
• Metallic Screen: Copper wires with equalising tape
• Separator: Binding Tape
• Outer Sheath: Medium Density Polyethylene (MDPE)
• Sheath Colour: Black

Standards

• BS 7870-4.10
• ES 02-0940
