SiHFC Silicone 180 Cable - 0.75mm² to 25mm²

Description

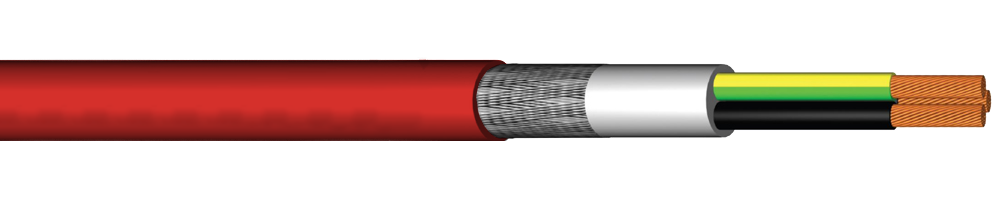

SIHFC is a flexible multicore cable with silicone insulation and outer sheath. This cable has a tinned wire copper braid which allows an element of mechanical strength and resistance to electro magnetic interference.

They are designed for use in environments with sustained temperature extremes and fluctuations, making them suitable for a wide range of industrial applications such as power plants, ships and aircrafts, furnaces and ovens. As silicone rubbers don't support fungal or bacterial growth they are also used in  food processing, refrigeration and medical industries

SIHF cables are rated to 300/500V. They are heat resistant up to 180°C and can also be employed at temperatures as low as -60°C. These silicon cables are low smoke zero halogen and are suitable for use in public buildings under CPR 2017.

Key Features

•
  Voltage Rating 300/500 Volts
•
  Minimum Bending Radius Fixed: 6 x overall diameter
  Flexing: 10 x overall diameter
•
  Flame Retardancy BS EN/IEC 60332-1-2
•
  Temperature Limits Temperature Range: -60°C to +180°C

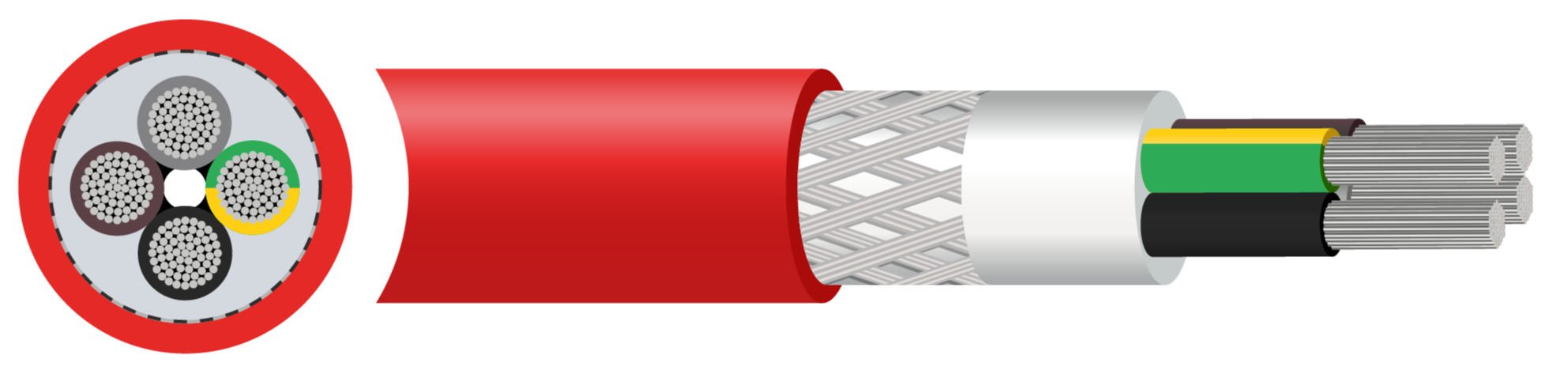

Construction

• Conductor: Class 5 tinned copper
• Insulation: Silicone Rubber
• Bedding: Silicone Rubber
• Braiding: Tinned Copper Wire Braiding (TCWB)
• Outer Sheath: Silicone Rubber
• Sheath Colour: Red

Standards

• BS EN/IEC 60332-1-2
• VDE 0482-332-1-2
• BS EN/IEC 60228

Core Colours
