SSE Approved Power Cable Single Core - 11kV, XLPE, MDPE - 150mm² to 800mm²

Description

Medium voltage single core aluminium power cable designed in accordance with Scottish & Southern Electricity (SSE) requirements. Manufactured by G81-approved suppliers, this 11kV XLPE insulated, MDPE sheathed cable is intended for use in electricity distribution networks, providing reliable connections between existing grids and new sub-main developments where DNO approval is required.

Key Features

•
  Voltage Rating 6.35kV / 11kV (12kV)
•
  Temperature Limits Temperature Range: 0°C to +90°C

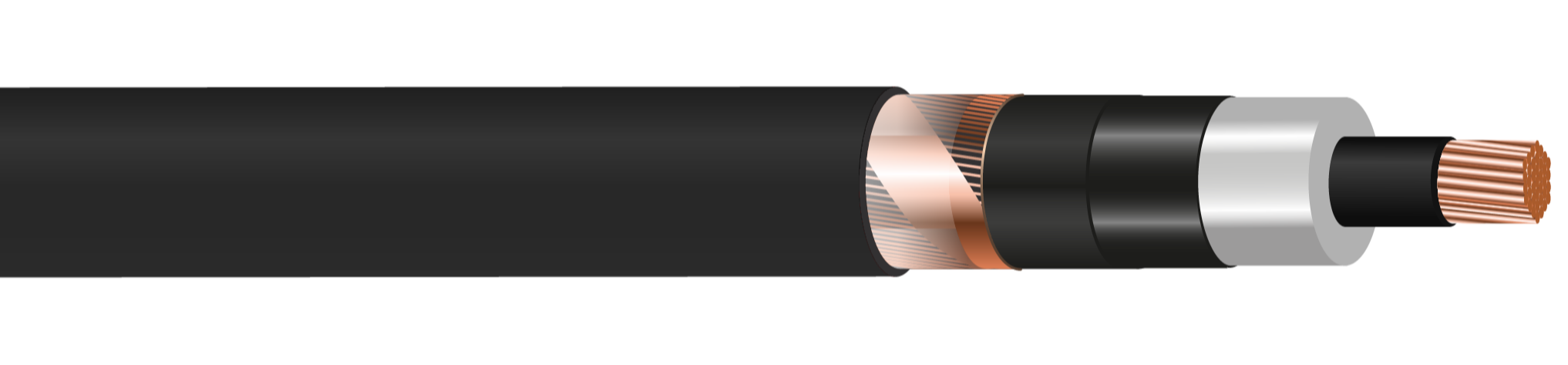

Construction

• Conductor: Solid or Stranded Aluminium Conductor
• Conductor Screen: Bonded semi conductive material
• Insulation: Cross Linked polyethylene (XLPE)
• Insulation Screen: Semi conducting compound
• Metallic Screen: Copper wires with equalising tape
• Separator: Binding Tape
• Outer Sheath: Medium Density Polyethylene (MDPE)
• Sheath Colour: Red

Standards

• BS 7870-4.10
• ES 02-0940
