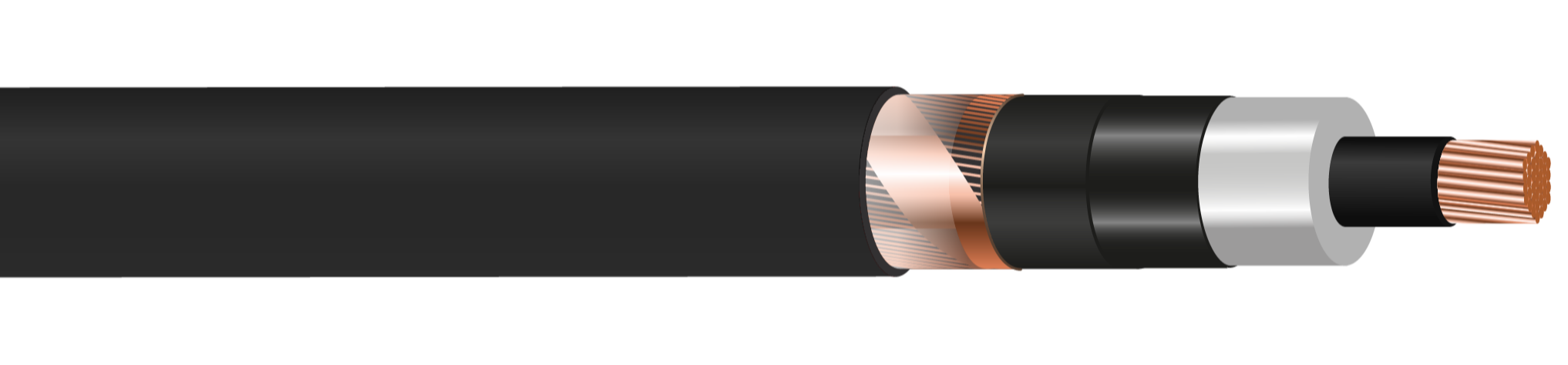

SSE Approved Power Cable Single Core - 33kV, XLPE, MDPE - 300mm² to 800mm²

Description

Medium voltage single core aluminium power cable approved to Scottish & Southern Electricity (SSE) specifications. Produced by G81-accredited manufacturers, this 33kV XLPE insulated, MDPE sheathed cable is intended for electricity distribution applications, providing compliant connections between existing networks and new sub-main developments within SSE-operated systems.

Key Features

•
  Voltage Rating 19/33 (36)kV
•
  Temperature Limits Temperature Range: 0°C to +90°C

Construction

• Conductor: Class 2 Stranded Aluminium Conductor
• Conductor Screen: Bonded semi conductive material
• Insulation: Cross Linked polyethylene (XLPE)
• Insulation Screen: Semi-Conductive material
• Metallic Screen: Copper wires with equalising tape
• Separator: Binding Tape
• Outer Sheath: Medium Density Polyethylene (MDPE)
• Sheath Colour: Black

Standards

• IEC 60502-1
• BS 7870-4.10
