Torsion Resistant PVC/PVC 1kV Power Cable

Torsion Resistant PVC/PVC 1kV Power Cable

Description

0.6-1kV PVC power cable. Specifically designed for wind turbines, for transmitting power between turbine generator and the  transformer at the base of the tower. The cable is manufactured to meet the torsional stresses associated with wind turbines. The PVC outer sheath remains flexible even in cold temperatures and is UV, Oil and Ozone resistant.

Key Features
  • Torsion Resistance
    Torsion Resistance ±140°/m
  • Voltage Rating
    Voltage Rating 600/1000 Volts
  • Minimum Bending Radius
    Minimum Bending Radius Fixed: 6 x overall diameter
    Flexing: 10 x overall diameter
  • Temperature Limits
    Temperature Limits Temperature Range: -40°C to +80°C

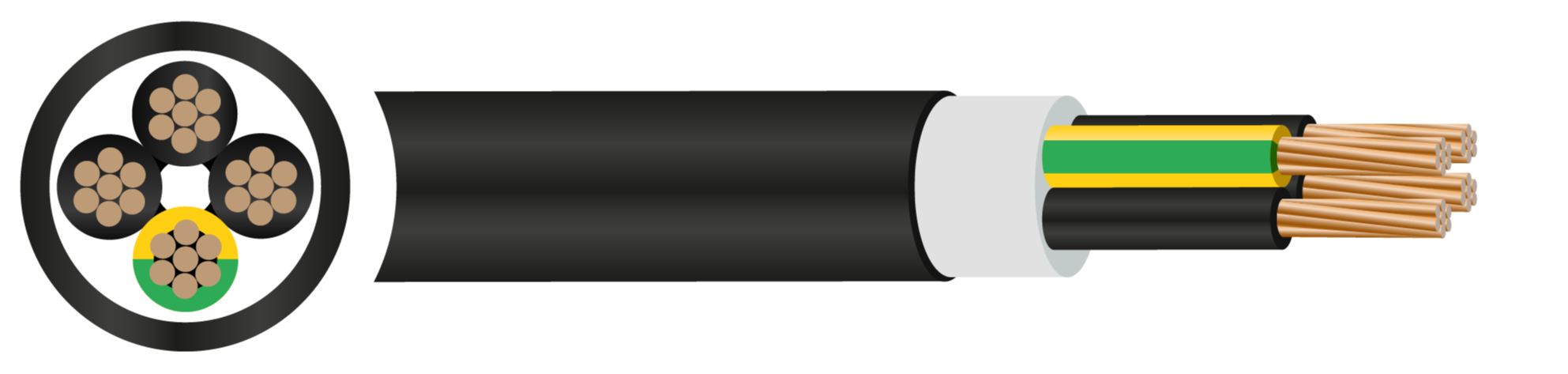

Construction
  • Conductor: Class 2 stranded copper conductor
  • Insulation: Polyvinyl Chloride (PVC)
  • Sheath: Polyvinyl Chloride (PVC)
  • Sheath Colour: Black
Standards
  • UL-758
  • DIN VDE 0295 / IEC 60228
  • CSA C22.2
  • BS EN/IEC 60811-507, BS EN/IEC 60811-403, BS EN/IEC 60811-404
