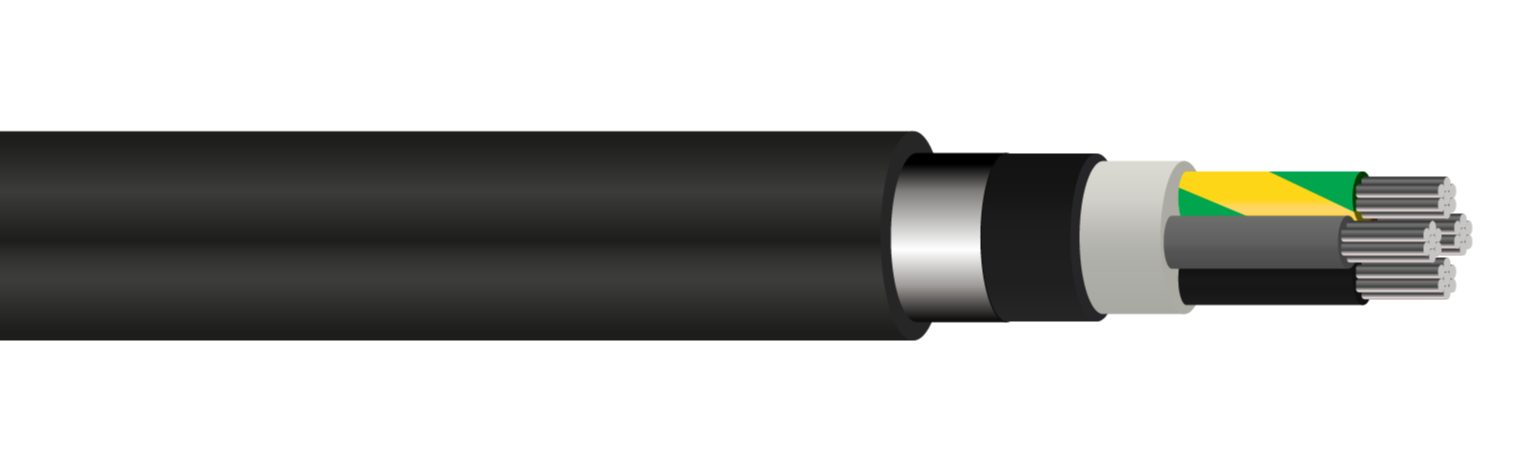

U-1000 ARVFV 1kV Cable - 10mm² to 300mm²

Description

U-1000 ARVFV are a stranded aluminium, XLPE, PVC power cable designed for power distribution systems in France. They are  designed in accordance with Norme Français NF C32-321 and NF C32-322 .The U-1000 defines the cables as having a voltage rating of 600/1000V (0.6/1kV). ARVFV cables have a temperature range of -10°C to +60°C U-1000.

This cable can be used in electric power plants, transformer stations, industrial plants, metropolitan networks and other electric plants. AR2V cable is designed for internal use, being fixed to walls or contained on cable tray or in conduit. In relevant installations this can then be used for direct burial externally. ARVFV cable includes a double layer of steel tape armour, providing some mechanical protection.

Key Features

•
  Voltage Rating 600/1000 Volts
•
  Minimum Bending Radius Single Core 15 x Overall Diameter
  Multicore 12 x Overall Diameter
•
  Flame Retardancy NF C 32-070 C2 / BS EN/IEC 60332-1
•
  Temperature Limits Operating Temperature: -15°C to +90°C
  Maximum Short Circuit Temperature: +250°C

Construction

• Conductor: Class 2 Stranded Aluminium Conductor
• Insulation: Cross Linked polyethylene (XLPE)
• Bedding: Extruded elastomere or plastomere compound or plastic tape
• Inner Sheath: Polyvinyl Chloride (PVC)
• Armour: Double Steel Tape
• Outer Sheath: Polyvinyl Chloride (PVC)
• Sheath Colour: Black

Standards

• BS EN/IEC 60228
• NF C 32-322
• NF C 32-070 C2 / BS EN/IEC 60332-1

Core Colours
