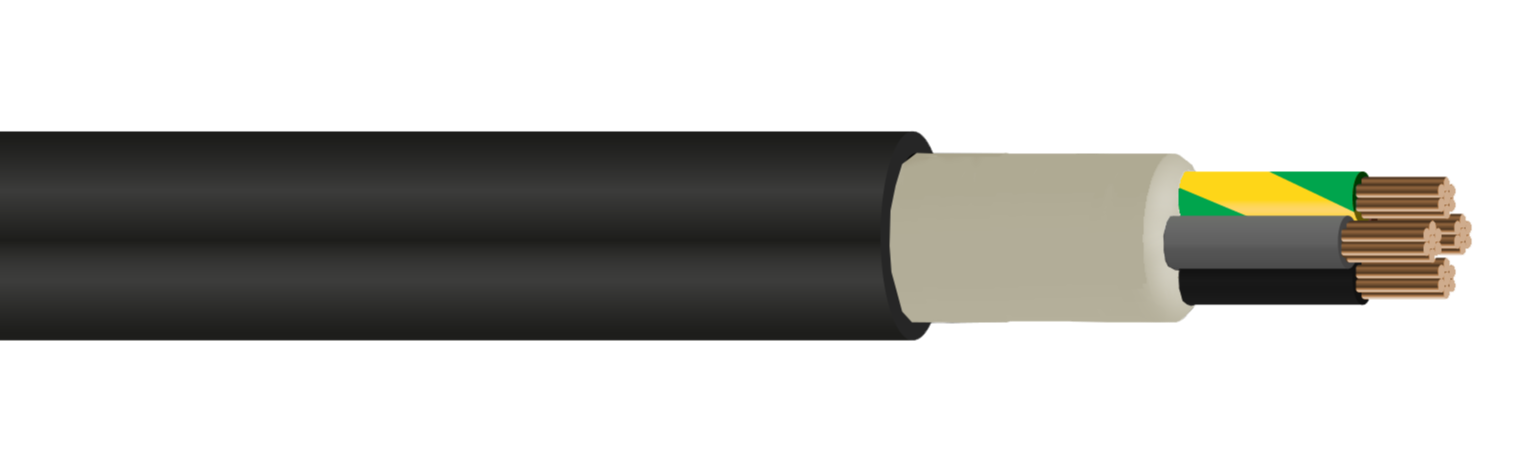

U-1000 R2V/XV/RV Cable - 1.5mm² to 630mm²
Description
U-1000 R2V XV/RV are Class 1/2 Copper, XLPE, PVC power cable designed for power distribution systems in France. They are designed in accordance with Norme Français NF C 32-321, NF C 32-322NF and C 32-070.
The U-1000 defines the cables as having a voltage rating of 600/1000V (0.6/1kV). U-1000 R2V XV/RV cables have a temperature range of -10°C to +60°C. U-1000 R2V XV/RV can be installed internally on tray and racking, externally in conduit and ducts
Core Colours
1 core: Black
2 core: Brown Blue
3 core: Black Brown Blue (For 1.5mm and 2.5mm)
3 core: Brown Black Grey
3 core with earth: Green Yellow Brown Blue
4 core: Black Brown Blue Grey
4 core with earth: Green Yellow Black Brown Blue
5 core: Black Brown Blue Grey Black
5 core with earth: Green Yellow Black Brown Blue Grey
7 core and higher: Green Yellow and Black cores with White numbers
