U-1000 RVFV / XAV XLPE PVC 0.6/1kV Cable - 1.5mm² to 240mm²

Description

U-1000 RVFV are Class 1/2 Copper, XLPE, PVC power cable designed for power distribution systems in France. They are  designed in accordance with Norme Français NF C 32-070 and NF C32-322 .The U-1000 defines the cables as having a voltage rating of 600/1000V (0.6/1kV). RVFV cables have a temperature range of -10°C to +60°C U-1000

U-1000 RVFV is constructed with additional two layers of steel tape armour. The cable is ideal for environments where additional protection is needed and can be installed internally on tray and racking, externally in conduit and ducts and in direct burial installations which wont be waterlogged.

Key Features

•
  Voltage Rating 600/1000 Volts
•
  Flame Retardancy IEC/EN 60332-1-2
•
  Temperature Limits Temperature Range: -10°C to +90°C

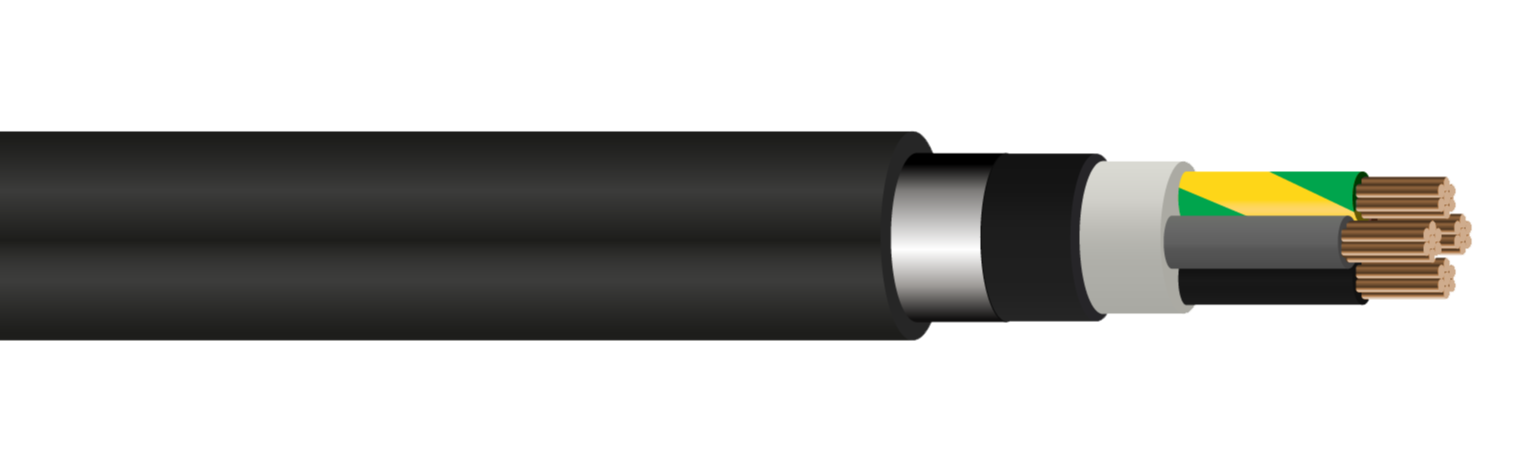

Construction

• Conductor: Class 1 Solid or Class 2 Stranded Copper conductor
• Insulation: Cross Linked polyethylene (XLPE)
• Bedding: Polyvinyl Chloride (PVC)
• Armour: Two Galvanised Steel Tapes
• Outer Sheath: Polyvinyl Chloride (PVC)

Standards

• IEC 60332-1-2
• IEC 60228
• NF C 32-322
• NF C 32-070

Core Colours
