UK Power Network Approved Single Core Cable (UKPN) - 33kV, XLPE, MDPE - 300mm² to 630mm²

Description

Medium voltage single core aluminium power cable manufactured to UK Power Networks requirements. Approved for use on UKPN infrastructure, this 19/33 (36)kV cable is produced by G81-accredited suppliers and intended for connecting existing distribution networks to new sub-main developments. It is designed for reliable performance in utility power systems where compliance with DNO specifications is essential.

Key Features

•
  Voltage Rating 19/33 (36)kV
•
  Temperature Limits Temperature Range: 0°C to +90°C

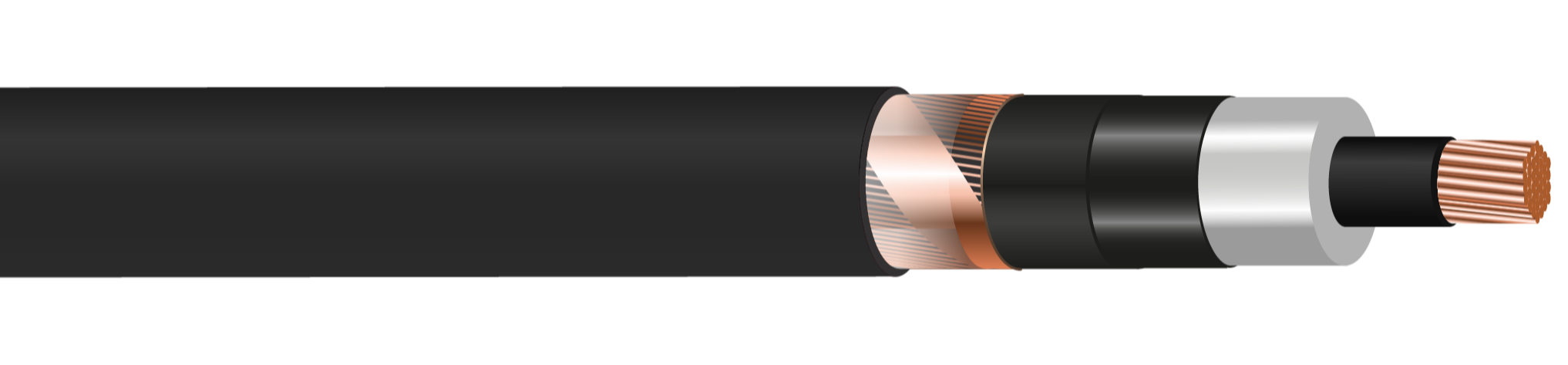

Construction

• Conductor: Solid or Stranded Aluminium Conductor
• Conductor Screen: Bonded semi conductive material
• Insulation: Cross Linked polyethylene (XLPE)
• Insulation Screen: Semi conducting compound
• Metallic Screen: Aluminium Wires
• Water Blocking: Swellable Tape
• Outer Sheath: Medium Density Polyethylene (MDPE)
• Sheath Colour: Black

Standards

• BS 7870-4.10
