NSHTÖU 0,6/1kV Cable - 1.5mm² to 240mm²

Description

NSHTÖU is a class 5 flexible cable typically used in cable winding reels for harbour cranes, container cranes, conveyors, handling machines and mining and tunnelling equipment. It is designed with a polyester braid anti twist layer to prevent the cable from twisting under severe mechanical stresses (tensile strength and torsion). The cable is suitable for heavy duty conditions, abrasion and crushing and is Oil, Ozone and UV resistant.

Key Features

•
  Voltage Rating 600/1000 Volts
•
  Minimum Bending Radius Fixed: 4 x overall diameter
  Flexing: 5 x overall diameter
•
  Flame Retardancy BS EN 60332-1-2
•
  Temperature Limits Fixed: -40°C to +60°
  Flexing: -25°C to +60°C

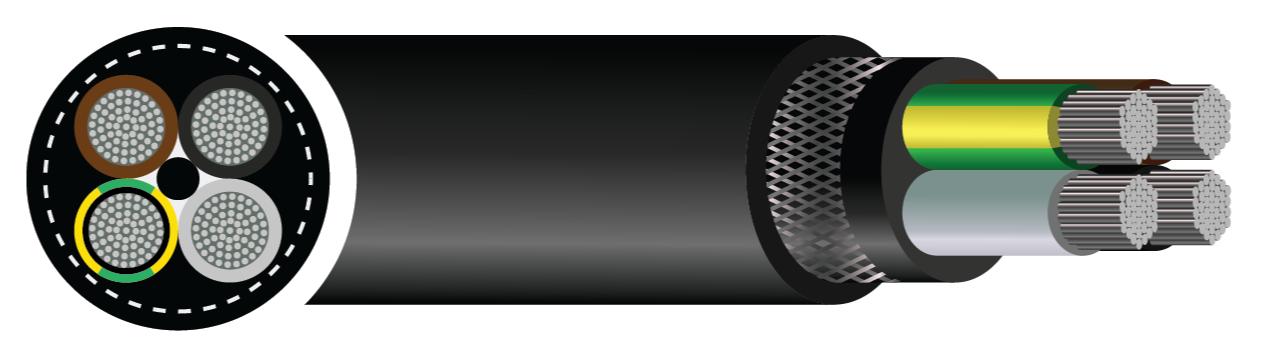

Construction

• Conductor: Class 5 Flexible Tinned Copper
• Insulation: Rubber Compound
• Bedding: Rubber based bedding compound
• Inner Sheath: Special Rubber Compound
• Antitwisting Element: Polyester Braid Between Inner & Outer Sheath
• Outer Sheath: Heavy Duty Rubber Compound

Standards

• IEC 60228, IEC/EN 60332-1-2, BS EN 60811-2-1
• VDE 0207 PT20 & PT21
• VDE 0298 Part 3 & Part 4
• Ozone resistant: BS EN/IEC 60811-403
• Oil resistant: BS EN/IEC 60811-404
• UV Resistant: ISO 4892-2
• VDE 0250 PT814
• VDE 0295
