RHZ1-OL, AL - 12/20 (24) kV - 50mm to 630mm

Description

RHZ1-OL, AL is used for medium voltage installations or distribution networks both indoors and outdoors.  It is commonly utilised in large infrastructure projects  for 24KV power supply in transformer stations, infrastructure, wind turbines, solar parks, factory plants and data centres.

Key Features

•
  Voltage Rating 12/20 (24kV)
•
  Minimum Bending Radius 15 x Overall Diameter
•
  UV/Ozone Resistance Yes
•
  Temperature Limits Ambient Temperature: -15°C to + 90°C

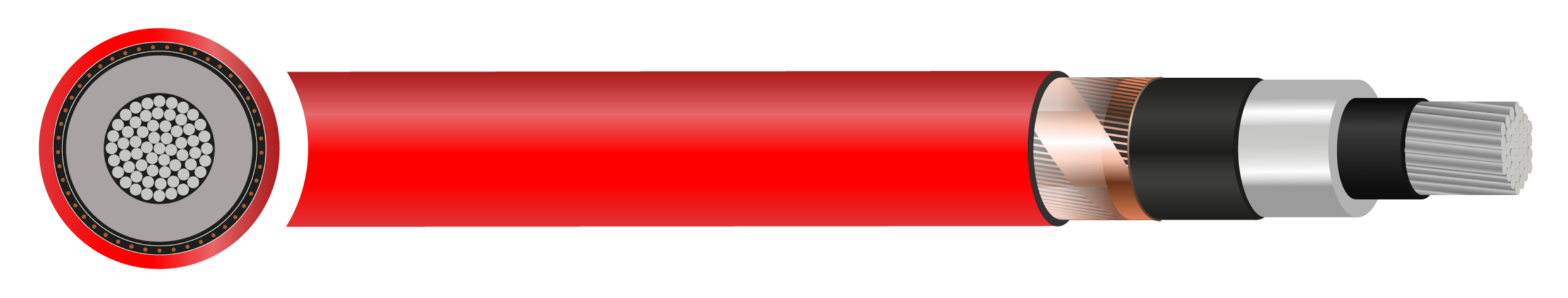

Construction

• Conductor: Stranded Aluminium Conductors
• Conductor Screen: Semi-Conductive material
• Insulation: XLPE, Semiconducting layer around the isolation. Easy strippable
• Longditudinal Waterblocking: Swellable Tapes

• Screen: Copper wires and copper tape
• Longditudinal Water Blocking: Swellable tapes
• Outer Sheath: Halogen free polyolefine type DMZ1 acc to 620-1 and type ST7 acc to IEC 60502-2

Standards

• IEC 60502-2
• IEC 60228
• UNE 211605
• IEC/EN 60754-1/2
• HD 605, Subclause 2.2.13
