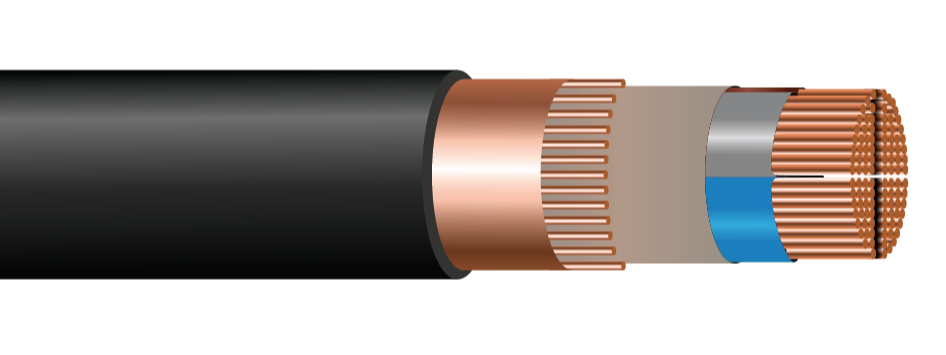

XCMK-HF, FXQJ, EXQJ, IFSI Cable - 1.5mm² to 300mm²

XCMK-HF, FXQJ, EXQJ, IFSI Cable - 1.5mm² to 300mm²

Description

XCMK-HF, FXQJ, EXQJ, IFSI is a copper power distribution cable designed for permanent installation in public buildings such as hospitals, schools, airports and shopping malls and large industrial plants throughout the Nordic and European markets. They are specifically designed for environments where fire safety and electromagnetic compatibility are priorities. This cable is halogen-free, flame-retardant and classified under CPR as Dca-s1,d2,a1. XCMK-HF cable may be laid indoor or outdoor, for fixed installations. Direct burial in soil is allowed, as long as the relevant national guidance on installation is followed.

XCMK-HF: A standard flame-retardant power cable for the Finnish market, often used as a halogen-free equivalent to MCMK cables.
FXQJ & EXQJ: Heavily used in Sweden and Norway for industrial distribution. The "J" typically indicates the presence of a concentric copper screen that can act as a protective earth or neutral conductor.
IFSI: Often used in industrial facilities where Electromagnetic Interference (EMI) is a concern. The construction includes a screen that protects sensitive electronic equipment from electrical noise.

Key Features
  • Voltage Rating
    Voltage Rating 600/1000 Volts
  • Minimum Bending Radius
    Minimum Bending Radius 12 x Overall Diameter
  • Flame Retardancy
    Flame Retardancy BS EN/IEC 60332-3-23
  • Temperature Limits
    Temperature Limits Temperature Range: -15°C to +90°C
Construction
  • Conductor: Up to 6mm2, Class 1 solid copper conductor | Above 10mm2 , Class 2 stranded copper conductor
  • Insulation: Cross Linked polyethylene (XLPE)
  • Bedding: Extruded elastomere or plastomere compound or plastic tape
  • Concentric Conductor: Copper wires with helical equalising copper tape
  • Outer Sheath: Halogen Free Fire Retardant (HFFR)
Standards
  • IEC 60502-1
  • HD 604-S1-5I
  • SFS 5546
  • SS 424 14 18

Core Colours

2 core: Blue Brown
3 core: Brown Black Grey
4 core: Blue Brown Black Grey

Outer Sheath: Black
