YMz1Krvasdlwd-12/20kv Power Cable

Description

YMz1Krvasdlwd is a 12/20kV Medium Voltage power cable with copper conductors. It is used in large infrastructure projects such as transformers, sub stations, datacentres etc and is suitable for installations directly in the ground or within cable ducts.

YMz1Krvasdlwd cables typically feature a Low Smoke Zero Halogen (LSZH) UV-resistant outer sheath, which makes them suitable for both indoor and outdoor installations. The cable has both Radial and longditudinal water blocking layers to prevent water ingress into the cable and an LSZH outer sheath.

Key Features

•
  Installation Guidelines Should not be installed at temperatures below 0°C
•
  Voltage Rating 12/20 (24kV)
•
  Minimum Bending Radius 15 x Overall Diameter
•
  UV/Ozone Resistance Yes
•
  Flame Retardancy IEC 60332-3-24c
•
  Flame Retardancy BS EN 60332-1-2
•
  Temperature Limits Maximum operating temperature of conductor: +90°C

  Maximum short-circuit temperature up to 5 sec: +250°C

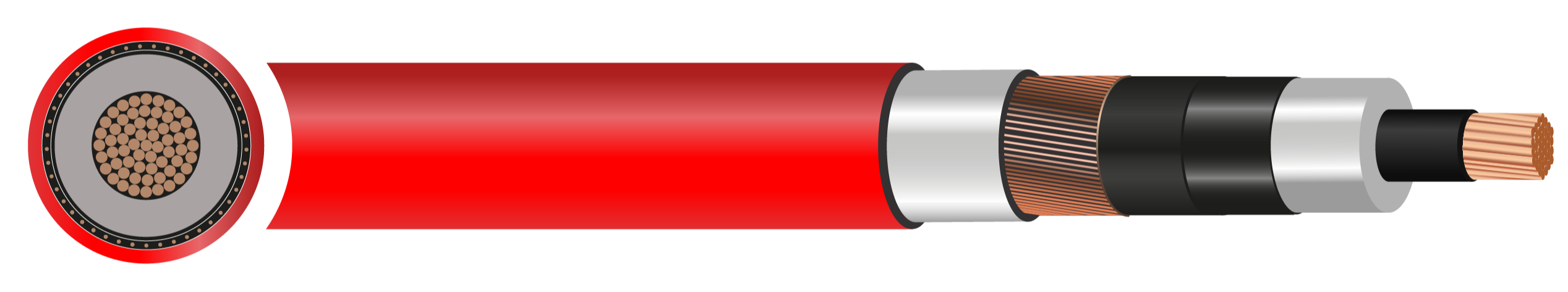

Construction

• Conductor: Class 2 stranded copper conductor
• Conductor Screen: Semi-Conductive material
• Insulation: Cross Linked polyethylene (XLPE)
• Insulation Screen: Semi conducting compound
• Screen: Copper wires and copper tape
• Waterblocking Tape: Longitudinal Semi-conductive swellable tape
• Waterblocking Tape: Radial applied water blocking tape
• Outer Sheath: Low Smoke Zero Halogen (LSZH)
• Sheath Colour: Red

Standards

• Generally to HD 620-10J
• Generally to NEN 3620
• BS EN/IEC 60332-1-2
• IEC 60228
• BS EN / IEC 60332-3-24 (cat C)
• BS EN 60228
