NA2XS(F)H 18/30 (36)kV Cable

Description

Medium voltage power cables with aluminium Conductor for distribution networks. This cable is used extensively in the renewables and datacentre sectors. NA2XS(F)H cable is suitable for external installation. Cables can be fixed on cable trays, within conduits or fixed to walls and is suitable for burial in ducts. The cable has two waterblocking layers and a UV Resistant Low Smoke, Zero Halogen (LSZH) outer sheath.

Key Features

•
  Voltage Rating 18/30 (36)kV
•
  Minimum Bending Radius 15 x Overall Diameter
•
  UV/Ozone Resistance Yes
•
  Water Resistance Yes
•
  Flame Retardancy IEC 60332-3-24c
•
  Flame Retardancy BS EN 60332-3-24
•
  Flame Retardancy BS EN 60332-1-2
•
  Temperature Limits Ambient Temperature: -20°C to +60°C

  Conductor Operating Temperature: +90°C

  Short Circuit Temperature up to 5 sec: 250°C

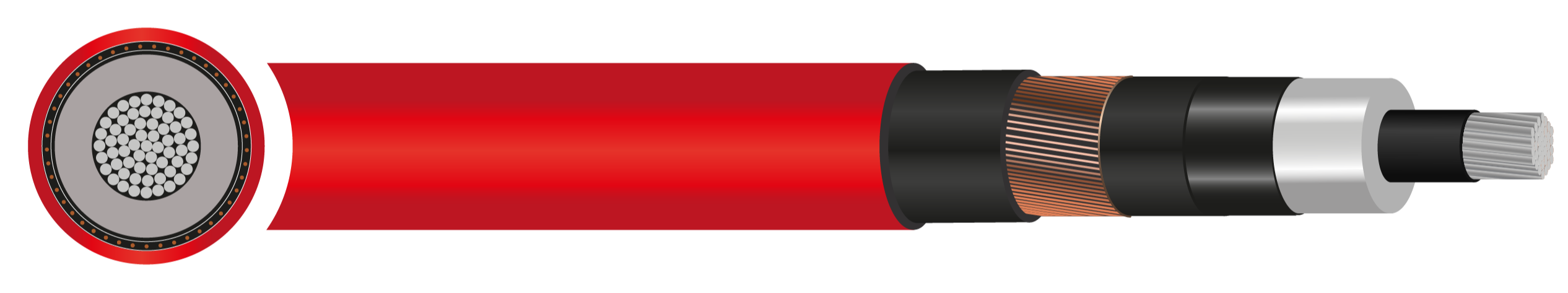

Construction

• Conductor: Class 2 Stranded Aluminium Conductor
• Conductor Screen: Semi-Conductive material
• Insulation: Cross Linked polyethylene (XLPE)
• Insulation Screen: Semi-conductive material (bonded)
• Longditudinal Waterblocking: Semi-conductive swellable tape
• Metallic Screen: Copper Wires plus Copper tape
• Tape: Longditudinal Water Blocking Tape
• Outer Sheath: Low Smoke Zero Halogen (LSZH)
• Sheath Colour: Red or Black

Standards

• BS EN 60332-3-24 Cat C
• UV Resistant: EN 50396
• BS EN 60332-1-2
• IEC 60228
• IEC 60502-2
• IEC 60332-1-2
