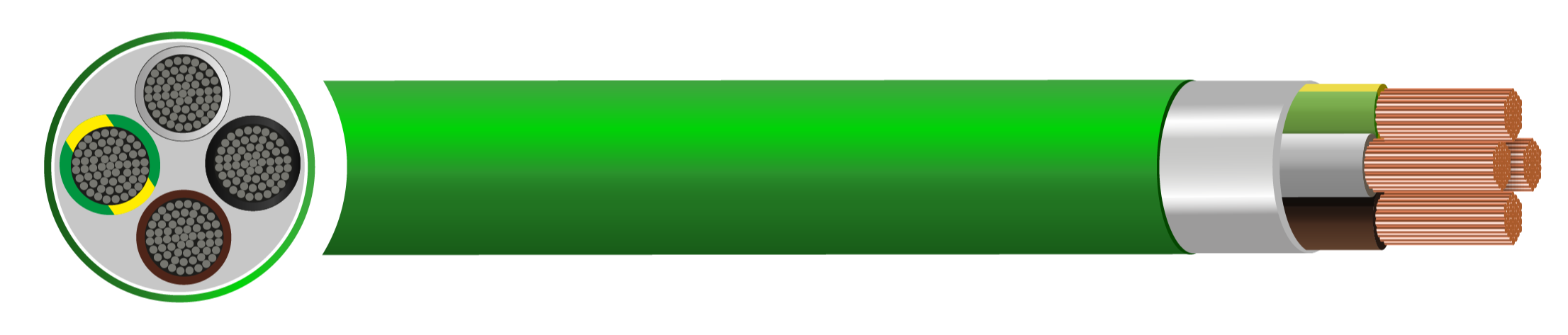

RZ1-K Power Cable - 1.5mm² to 630mm²

Description

The RZ1-K multicore is a 0.6/1kV multicore cable manufactured with Class 5 copper conductors designed to be used in complicated containment routes.  The Low Smoke Zero Halogen (LSZH) Polyolefin outer sheath doesn't emit toxic fumes and smoke in the event of fire which makes it safe to be installed in buildings and public areas in line with CPR 2017.

This cable has a UV resistant green sheath making it also suitable for direct exposure to sunlight. The cable is manufactured for many versatile installations both internal and external including use datacentres and in underground outdoor lighting arrangements. This cable is not suitable for direct burial as it has no mechanical protection.  RZ1-K is also available as a 1.8kV single core cable.

Key Features

•
  Voltage Rating 600/1000 Volts
•
  Minimum Bending Radius 5 x Overall Diameter
•
  Flame Retardancy BS EN/IEC 60332-3-10
•
  Temperature Limits Temperature Range: -15°C to +90°C

Construction

• Conductor: Class 5 Flexible stranded copper
• Insulation: Cross Linked polyethylene (XLPE)
• Sheath: Low Smoke Zero Halogen (LSZH)

Standards

• IEC 60502-1
• BS EN 60228
• IEC 60332-3-24
• IEC/EN 61034-1/2,
• BS EN/IEC 60332-1-2
• IEC/EN 60754-1/2

Core Colours
