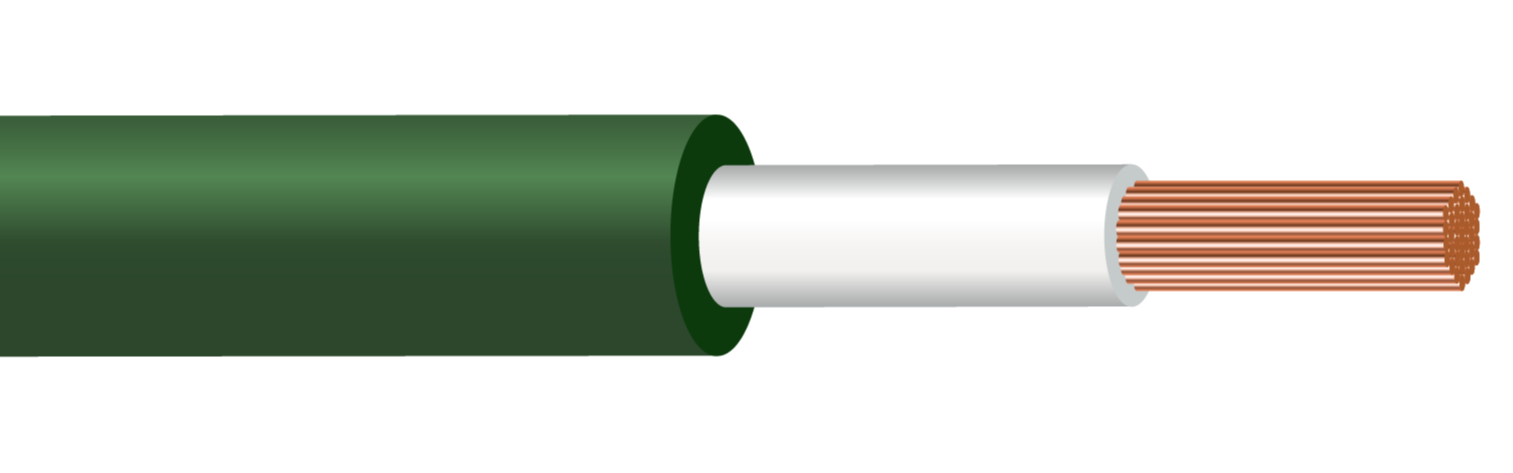

RZ1-K (AS) XLPE LSZH Flexible1.8/3kV Cable

Description

The RZ1-K(AS) is a single core flexible copper power and control cable with a voltage rating of 1.8/3kV. The RZ1-K is manufactured with Class 5 copper conductors designed to be used in complicated containment routes.  The Low Smoke Zero Halogen (LSZH) Polyolefin outer sheath doesn't emit toxic fumes and smoke in the event of fire which makes it safe to be installed in buildings and public areas in line with CPR 2017.

This cable generally has a UV resistant green or black sheath making it also suitable for direct exposure to sunlight. The cable is manufactured for many versatile installations both internal and external including usage in underground outdoor lighting arrangements. This cable is not suitable for direct burial as it has no mechanical protection.  RZ1-K is also available as a 0.6/1kV multicore cable.

Key Features

•
  Voltage Rating 1.8/3kV
•
  Minimum Bending Radius 6 x overall diameter
•
  Minimum Bending Radius 5 x overall diameter (25≤ D ≤ 50)
  6 x overall diameter (D>50)
•
  Flame Retardancy BS EN/IEC 60332-1
  BS EN/IEC 60332-3
•
  Temperature Limits Temperature Range: -30°C to +60°C
  Maximum Conductor Temperature: 90°C
  Short Circuit Temperature: +250°C

Construction

• Conductor: Class 5 flexible stranded copper conductor
• Insulation: Cross Linked polyethylene (XLPE)
• Outer Sheath: Halogen Free Polyolefin (PO)
• Sheath Colour: Green or Black

Standards

• UNE 211605
• UNE 21123-4
• BS EN/IEC 60228
• IEC 60502-1
• BS EN/IEC 60754-1/2
• BS EN/IEC 60332-3
• BS EN/IEC 61034
• BS EN 50618
• BS EN/IEC 60332-1
