XAI Marine Power Cable
Description
Used as fixed installation cables in various electromechanical and electronic equipments of marine vehicles, in most areas & open deck in ships.
Due to its’ overall screen the electromagnetic interference is minimized.
Key Features
-
Voltage Rating 600/1000 Volts -
Minimum Bending Radius 6 x overall diameter -
Temperature Limits Temperature Range: -40 to 90°C

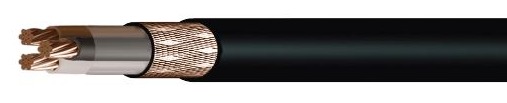

Construction
-
Conductor: Electrolytic stranded annealed copper wire Class 5. (Class 2 and / or tinned on request)
-
Insulation: Cross Linked polyethylene (XLPE)
-
Inner Covering: Separating Foil
-
Screen: Electrolytic copper braided screen (90% coverage). (Tinned copper wire braid on request)
-
Sheath: Halogen-free, flame retardant, polyolefin based compound (SHF1)
-
NOFI: With separating foil
Standards
-
IEC 60092-353
-
IEC/EN 60754-1/2
-
IEC 60092/350-360
-
IEC 60332/3-22 CAT A
-
IEC 61034/1-2 (DIN EN 50268/1-2)
-
IEC 60332-1-2, IEC 60228, IEC 60811/403
