LV Aerial Bundle Cable (ABC) 1kV - 25mm² to 120mm²

LV Aerial Bundle Cable (ABC) 1kV - 25mm² to 120mm²

Description

Low voltage aerial bundle cable designed for 1kV overhead power distribution. ABC cables provide improved safety, reduced maintenance and lower power losses, making them ideal for rural and urban installations where underground cabling is impractical.

Key Features
  • Voltage Rating
    Voltage Rating 600/1000 Volts
  • Minimum Bending Radius
    Minimum Bending Radius 12 x Overall Diameter
  • Temperature Limits
    Temperature Limits Maximum working temperature: 75°C
  • Temperature Limits
    Temperature Limits Temperature Range: -15°C to + 90°C
    Maximum short-circuit temperature: 250°C

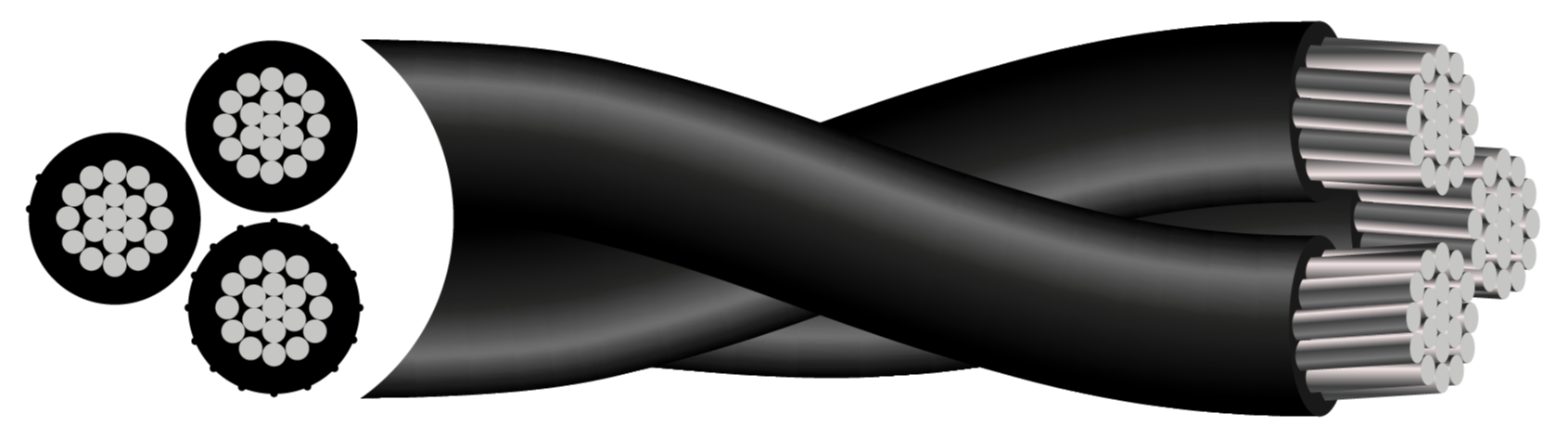

Construction
  • Phase Conductor: Class 2 Stranded Aluminium
  • Insulation: XLPE (Cross-linked polyethylene) compound TIX 2
  • Neutral Conductor: Class 2 Stranded Aluminium
  • Sheath Colour: Black
Standards
  • IEC 60228
  • BS 7870-5
  • HD 626 S1

Core Colours

Core Identification

Phases by longitudinal ribs (I, II, III)
neutral core by longitudinal ribs
