Aluminium HEPR/PO LSZH 1kV Turbine Power Cable

Aluminium HEPR/PO LSZH 1kV Turbine Power Cable

Description

Double insulated, Lightweight LSZH aluminium single core cables . This Oil, ozone and UV Resistant cable is used extensively in the renewables industries
for routing of power inside wind turbine towers

Key Features
  • Voltage Rating
    Voltage Rating 600/1000 Volts
  • Minimum Bending Radius
    Minimum Bending Radius 6 x overall diameter
  • Flame Retardancy
    Flame Retardancy BS EN/IEC 60332-1
  • Temperature Limits
    Temperature Limits Temperature Range: -40°C to +90°C
    Maximum Short Circuit Temperature: +250°C

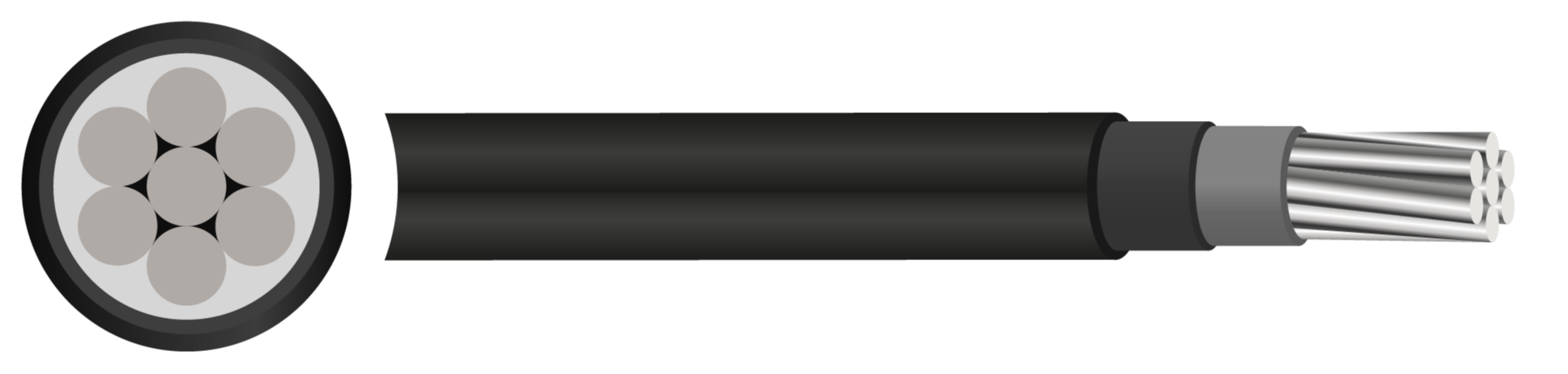

Construction
  • Conductor: Class 2 Stranded Aluminium Conductor
  • Insulation: Hard Ethylene Propylene Rubber (HEPR)
  • Inner Sheath: Rubber Compound
  • Outer Sheath: Polyolefin (PO)
  • Sheath Colour: Black
Standards
  • IEC 60502-1
  • BS EN/IEC 60332-1
  • BS EN/IEC 60228
  • BS EN/IEC 60754-1
  • BS EN/IEC 61034
  • BS EN/IEC 60332-3
