Aluminium XL-EVA LSZH 1kV Turbine Tower Cable

Description

Class 2 aluminium with ethylene propylene rubber (EPR) insulation and a cross linked ethylene vinyl acetate (XL-EVA) outer sheath.  This is a wind turbine power cable designed to be installed inside a turbine tower and is UV, ozone, water & oil resistant.

Key Features

•
  Voltage Rating 600/1000 Volts
•
  Minimum Bending Radius 6 x overall diameter
•
  Flame Retardancy BS EN/IEC 60332-1
  BS EN/IEC 60332-3
•
  Temperature Limits Temperature Range: -40 to 90°C

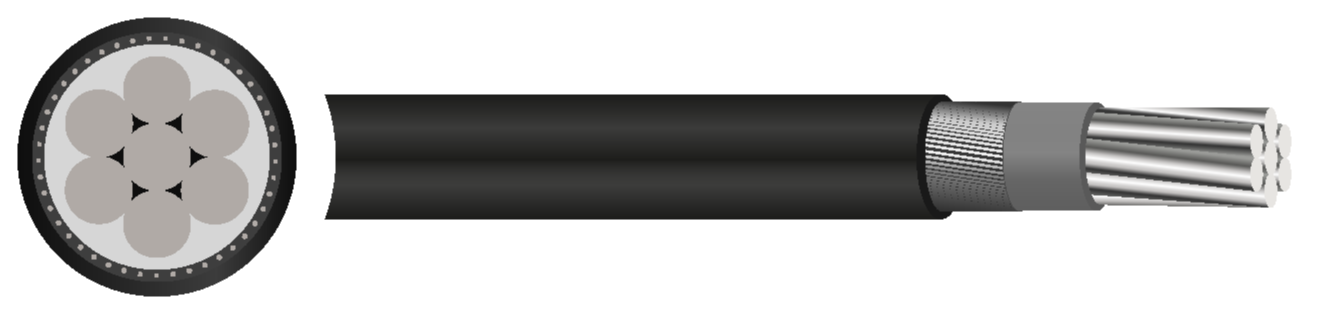

Construction

• Conductor: Class 2 Stranded Aluminium
• Insulation: Ethylene Propylene Rubber (EPR)
• Metallic Screen: Tinned Copper Wire Braid (TCWB)
• Outer Sheath: Cross-linked Ethylene-Vinyl Acetate (XL-EVA)
• Sheath Colour: Black

Standards

• IEC 60502-1
• IEC 60228
• IEC 60754-1
• IEC/EN 61034-1/2,
• BS EN/IEC 60332-1
• BS EN / IEC 60332-3

Core Colours
