CMP Sabre Cleats

Description

Overview

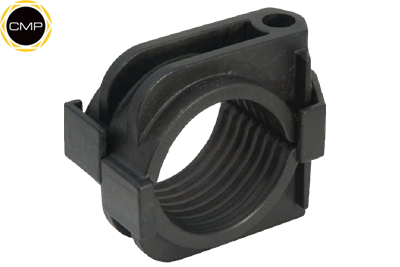

The CMP Sabre One Bolt single cable cleat is a non-metallic cable cleat which has been designed, constructed, and tested in accordance with the International Standard ‘cable cleats for Electrical Installations’ (IEC 61914).

It ensures the retention and securing of single cables, without damaging or deforming the cable. The cable cleat is manufactured from various materials making it suitable for both indoor and outdoor applications. Due to its unique twin arc internal patent pending design profile it exhibits excellent retention, limiting both the axial and lateral cable movement. This cable cleat has an M10 clearance hole for securing it to a mounting surface.

• Third party certification to IEC 61914
• Available in three different materials:
  - Nylon
  - Low Smoke & Fume (LSF), Zero Halogen (LS0H), Phosphorus
  - Free and V0 Nylon
  - LUL approved polymer
• Sunlight (UV) & weather resistant
• Operating temperature -40°C to +60°C
• Excellent axial & lateral load retention
• Single bolt fixing design
