EAYY 0.6/1kV Cable

EAYY 0.6/1kV Cable

Description

EAYY is a 0.6/1kV low voltage unarmoured power cable used  in a range of industries, including renewable energy and petrochemicals. The PVC insulation and sheath are ideal for where the cable may be exposed to changes in temperature. The PVC sheath is durable and offers protection against UV radiation and a resistance to chemicals including oils, acids and alkalis. The cable is flame retardant and can be used indoors, outdoors, in water or underground.

Key Features
  • Core Identification
    Core Identification HD 308 S2
  • Voltage Rating
    Voltage Rating 600/1000 Volts
  • Minimum Bending Radius
    Minimum Bending Radius Single Core 15 x Overall Diameter
    Multicore 12 x Overall Diameter
  • Flame Retardancy
    Flame Retardancy BS EN/IEC 60332-1
  • Temperature Limits
    Temperature Limits Temperature Range:
    Fixed: -20°C to +70°C
    Flexing: -5ºC to +70ºC
    Maximum short circuit temperature:
    300mm² and under: 160°C
    Over 300mm²: 140°C

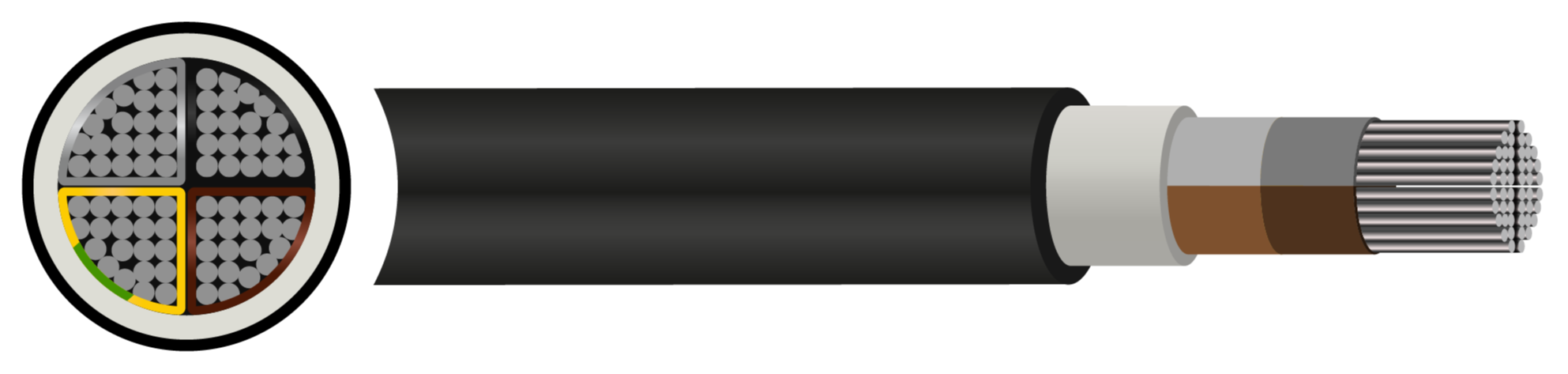

Construction
  • Conductor: Class 1 or 2 Stranded Aluminium
  • Insulation: Polyvinyl Chloride (PVC)
  • Filler: Polyvinyl Chloride (PVC)
  • Outer Sheath: Polyvinyl Chloride (PVC)
  • Sheath Colour: Black
Standards
  • BS EN/IEC 60332-1
  • BS EN/IEC 60228
  • HD 308 S2
  • HD 603 S1
  • ÖVE/ÖNORM E 8200-603
  • ÖVE/ÖNORM E 8200-627

Core Colours

1 Core - Green Yellow or Black

2 core - Brown Blue
3 core - Brown Blue Green Yellow
4 core - Brown Blue Black Green Yellow
5 core - Brown Blue Black Grey Green Yellow
