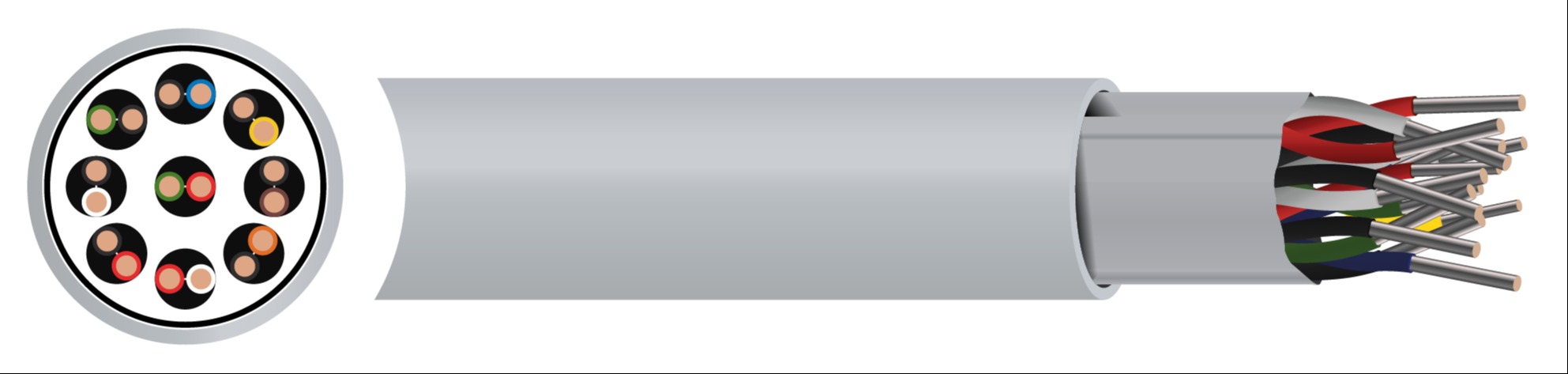

Belden Equiv 8774 Multi-Conductor CM Rated Cable

Description

This multi-pair individually screened instrumentation cable is designed for high-performance computer communications, low-voltage digital control, and audio systems, featuring 22 AWG stranded tinned copper conductors, polypropylene insulation, and individual aluminium/polyester foil screens with a PVC sheath.

Engineered for indoor industrial environments, the cable is compliant with NEC Article 800 Type CM, UL Style 2919, and RoHS standards, with an operating temperature of -20°C to +80°C and a 300V voltage grade.

Suitable for installation in trays, conduits, and panels, the cable requires a minimum bending radius of 10 times the overall diameter and should not be used in direct burial or unshielded outdoor applications. Not suitable for CMR/Plenun applications

Key Features

•
  Voltage Rating 300 Volts
•
  Minimum Bending Radius 10 x Overall Diameter
•
  Temperature Limits Temperature Range: -20°C to +80°C

Construction

• Conductor: Class 2 stranded tinned copper
• Insulation: Polypropylene (PP)
• Drain Wire: Tinned Copper
• Outer Sheath: Polyvinyl Chloride (PVC)
• Sheath Colour: Grey

Standards

• UL Style number 1685
• Belden 8774

Core Colours
