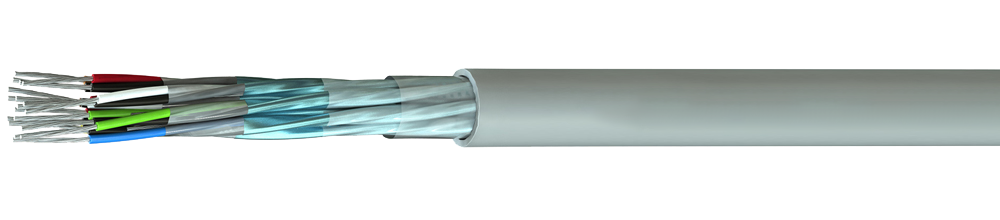

Belden Equivalent 9402 cable

Description

9402 cable is a  2-pair, 20 AWG stranded tinned copper instrumentation cable features PVC-insulated conductors (Red/Black and Green/White) designed with individual aluminium/polyester foil screens and a 22 AWG drain wire for noise reduction. The construction is finished with a protective outer sheath in PVC,

Engineered for industrial signaling, data, and security systems, this 300V-rated cable ensures clean signals in high-EMI environments. It complies with UL AWM Style 2464, NEC Type CMG, and UL1685-FT4 safety standards.

Suitable for internal, flexible, or static applications, the cable operates between -20°C and +80°C, requiring a 0°C minimum install temperature. The design mandates a minimum bending radius of 10 times the overall diameter and proper grounding of the drain wire.

Key Features

•
  Voltage Rating 300 Volts
•
  Minimum Bending Radius 10 x Overall Diameter
•
  Temperature Limits Operating Temperature: -20°C to +80°C

Construction

• Conductor: Stranded tinned copper
• Insulation: Polyvinyl Chloride (PVC)
• Insulation Screen: Alu/Polyester Tape (AL/PET) Screen On Each Pair
• Drain Wire: Tinned Copper
• Outer Sheath: Polyvinyl Chloride (PVC)
• Sheath Colour: Grey

Core Colours
