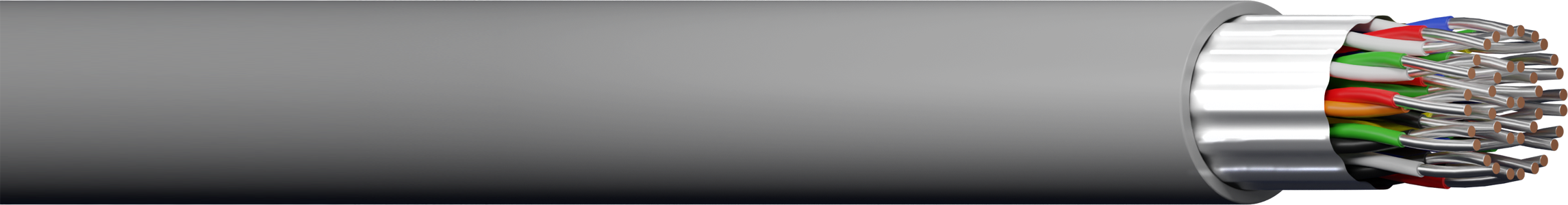

Belden Equiv 9519
Description
An overall foil screened cable used for data control circuits, computers and RS 232 applications.
Key Features
-
Voltage Rating 300 Volts -
Minimum Bending Radius 10 x Overall Diameter -
Temperature Limits Operating temperature: -30°C to +80°C
Construction
-
Conductor: Stranded tinned copper
-
Insulation: Polyvinyl Chloride (PVC)
-
Insulation Screen: Aluminium/Polyester Tape Screen (AL/PET)
-
Drain Wire: Tinned Copper
-
Outer Sheath: Polyvinyl Chloride (PVC)
-
Sheath Colour: Grey
Core Colours
Pair 1: Black Red Pair 11: Red Yellow
Pair 2: Black White Pair 12: Red Brown
Pair 3: Black Green Pair 13: Red Orange
Pair 4: Black Blue Pair 14: Green White
Pair 5: Black Yellow Pair 15: Green Blue
Pair 6: Black Brown Pair 16: Green Yellow
Pair 7: Black Orange Pair 17: Green Brown
Pair 8: Red White Pair 18: Green Orange
Pair 9: Red Green Pair 19: White Blue
Pair 10: Red Blue
