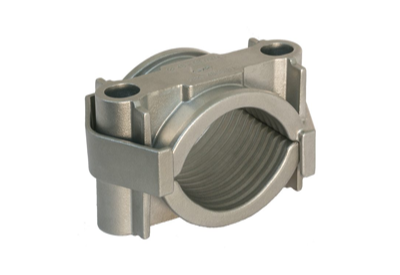

CMP Themis (2BCHT) Heavy Duty Fire Rated Cable Cleats (Two Bolt)

Enquire Now

Description

The Themis (2BCHT) two-bolt high-temperature single cable cleat is a heavy-duty, fire-rated solution engineered for the secure retention of single cables in critical electrical installations. Tested to IEC 61914 (Cable Cleats for Electrical Installations), it ensures cables are firmly secured without damage or deformation.

Fire-Rated Protection for Critical Circuits

The Themis (2BCHT) cable cleat is purpose-built for use with LSZH and fire performance cables, maintaining support and system integrity during prolonged high-temperature fire conditions. It plays a key role in protecting life safety systems and evacuation routes, ensuring continued operation during emergencies.

High Strength Design for Maximum Retention

Featuring a patent-pending twin arc internal design, Themis cleats deliver excellent cable retention, significantly reducing both axial and lateral movement under fault or high-temperature fire conditions. The two-bolt fixing design enhances stability and load performance, making it ideal for larger cable diameters and demanding installations.

Built for Harsh Environments

Manufactured from marine-grade 316L stainless steel, the Themis cleat offers exceptional resistance to corrosion, making it suitable for indoor, outdoor and industrial environments.

With an operating temperature range of -60°C to +250°C and fire resistance tested up to 1,200°C, it is designed for high-temperature, fire-rated applications.

Sizes & Installation

Choose the correct Themis cleat by matching the cable outer diameter, installation method and required performance rating for the circuit.
The CMP Themis cleat is available in 6 sizes, accommodating cable diameters from 38mm to 109mm, providing efficient coverage with fewer product variations.
Each cleat features two M10 or M12 clearance holes, allowing installation with either M10 or M12 fasteners. The cleats are also stackable where required, offering a flexible and reliable cable management solution for demanding life safety and fire-rated installations.
For best results, confirm availability and lead times when ordering, and request technical support for sizing and selection where required.

Key Features

316L stainless steel construction
Fire-rated for critical cable retention
Operating temperature: -60°C to +250°C
Fire tested up to 1,200°C (fire, shock & water)
Suitable for 38mm – 97mm cable diameters
Twin arc design for superior retention
Stackable for flexible installation
Excellent axial and lateral load performance

Technical Specifications

Type: 6.1.1 Metallic 2BCHT – Two Bolt High Temperature Cable Cleat
Standard: IEC 61914
Operating Temperature: -60°C to +250°C
Fire Performance: BS5839 / BS8491 / EN50200 / BS8434 / AS-NZS 3013 (up to 1,200°C)
Needle Flame Test: Pass (120 seconds) – IEC 60695-11-5
Lateral Load: 25kN (IEC 61914)
Axial Load: 5kN (IEC 61914)
Impact Resistance: Very Heavy (IEC 61914)
Material: 316L Stainless Steel
Colour: Silver / Grey
UL Certification: E490770-20180430
Standards Compliance: UL 2239, CSA C22.2 No. 18.4-15

For short circuit ratings, please contact Cleveland Cable Company for support. For projects requiring high-temperature fire survivability, specify the required fire-rated performance and cable type at the ordering stage.

Short Circuit Testing to IEC 61914 - Clause 9.5
Multicore Formation		Parallel Formation
One short-circuit 600 mm fixed cleat centres	Two short-circuit 600 mm fixed cleat centres	One short-circuit 600 mm fixed cleat centres 105 mm cable centres	Two short-circuits 600 mm fixed cleat centres 105 mm cable centres	One short-circuit 600 mm fixed cleat centres 105 mm cable centres	Two short-circuits 600 mm fixed cleat centres 105 mm cable centres
0.1 sec	0.1 sec	0.1 sec	0.1 sec	1 sec	1 sec
100 kA Peak	100 kA Peak	130 kA Peak	120 kA Peak	81 kA Peak	71 kA Peak
47.6 kA RMS	47.6 kA RMS	59.0 kA RMS	54.5 kA RMS	36.8 kA RMS	32.2 kA RMS
