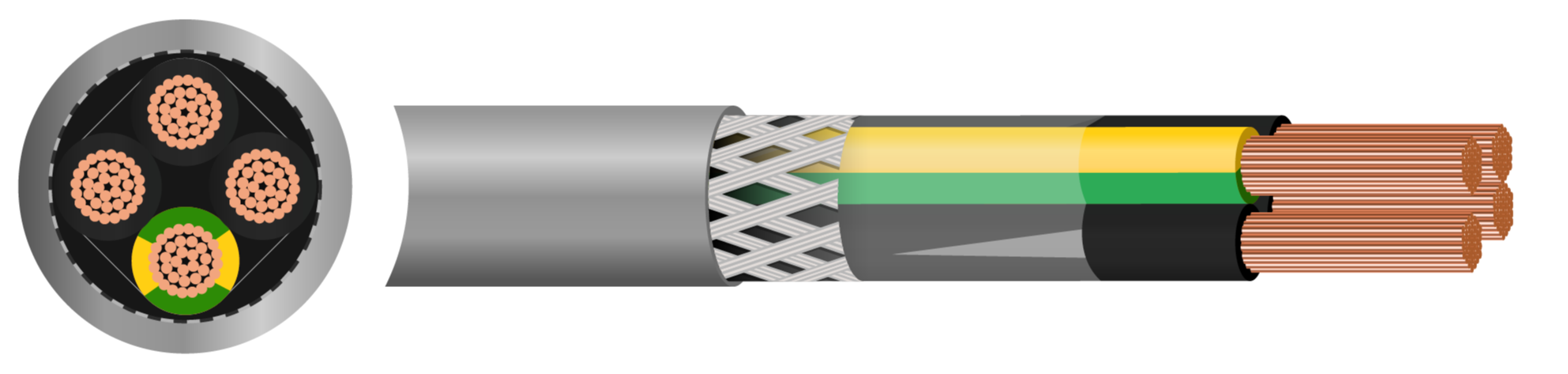

Control PUR-JZ Screened Cable - 1mm² to 6mm²

Enquire Now

Description

PUR-JZ screened cable is a high-performance control and signal line featuring Class 5 copper conductors, PVC insulation, and a Polyurethane (PUR) outer sheath. It features a tinned copper wire braid (TCWB) to provide effective electromagnetic compatibility (EMC) shielding, mitigating signal distortion in high-interference environments. It is engineered for durability, with a bending radius of bend radius of 5 times the outer diameter while offering operational stability across a wide thermal range, from -40°C to +80°C.

The cables is designed for high-stress industrial applications and is particularly suited for environments where resistance to mineral oils, coolants, and abrasion is critical. It is frequently deployed in machine tool manufacturing, automotive production, and robotic assembly lines due to its superior mechanical strength and tearing resistance. The "JZ" variant has black, numbered cores with an integrated green-yellow earth conductor, supporting safe electrical termination in systems requiring a dedicated ground.

The main advantage of the PUR-JZ variant is its chemical and UV resistance, allowing for reliable performance in both indoor and outdoor settings. Its polyurethane jacket is notch-resistant and flame-retardant, providing a robust solution for installations subjected to continuous flexing or medium mechanical loads. This combination of durability and shielding makes it the preferred choice for industrial sectors requiring long-term reliability under harsh operational conditions.

Key Features

Voltage Rating 300/500 Volts
Minimum Bending Radius Fixed: 5 x overall diameter
Flexing: 10 x overall diameter
Flame Retardancy BS EN/IEC 60332-1-2
Temperature Limits Fixed: -40°C to +80°C
Flexing: -5°C to +80°C
