Curly Flex PVC Cable - 0.75mm² to 2.5mm²

Description

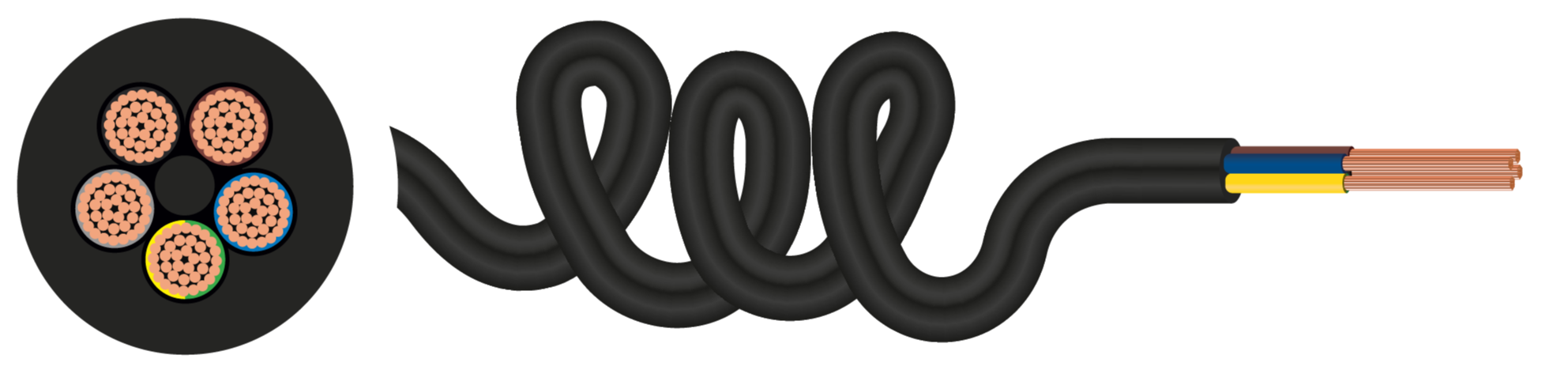

Curly Flex PVC cable is constructed using finely stranded Class 5 copper conductors to facilitate smooth movement during extension and retraction cycles. Both the internal core insulation and the outer jacket are composed of Polyvinyl Chloride (PVC), a material selected for its versatility and cost-effectiveness in controlled environments. While less resilient than rubber-based alternatives, this construction provides sufficient protection for light-to-medium mechanical applications and is specifically designed for use in dry or damp indoor settings where exposure to harsh chemicals or extreme industrial fluids is minimal.

This cable is frequently specified for commercial and domestic applications, including portable office equipment, handheld power tools, and height-adjustable workstations. Its electrical characteristics typically include a voltage rating of 300/500V, with a thermal operating range generally between +5°C and +70°C for flexible use. To prevent internal conductor fatigue, the bending radius is recommended at approximately 10 to 15 times the outer diameter. These features make it a dependable choice for providing power and control signals to modular furniture, lighting systems, and light-duty machinery where a compact footprint is required.

The technical advantage of this spiralised PVC configuration over a standard straight lead is its efficient management of excess cable length within limited spatial constraints. The inherent memory of the coiled PVC allows the cable to expand as needed and retract immediately, which prevents entanglement and protects the cable from being crushed or caught in moving parts. Furthermore, the spiral design naturally dissipates mechanical tension, reducing the physical strain on termination points and connectors. This ensures a higher degree of operational safety and tidiness in environments where equipment is frequently repositioned or adjusted.

Core Colours
