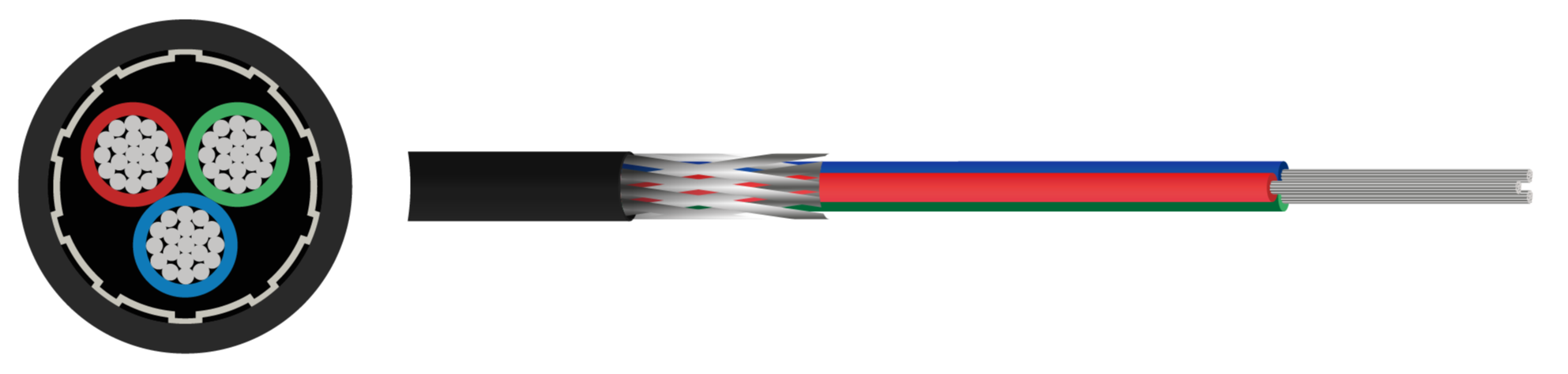

Defence Standard 61-12 Part 4 Cable

Description

These Multi-Core flexible cables are designed for high density wiring between components within instruments and electronic equipment. They are extensively used in aircraft, process control systems, computers, data processors, military vehicles and military equipment.

Key Features

•
  Voltage Rating 7/0.1mm cores: 250V r.m.s., up to 1.6 kHz
  7/0.2mm cores: 440V r.m.s., up to 1.6 kHz
•
  Minimum Bending Radius 7.5 x overall diameter
•
  Temperature Limits Fixed: -30°C to +70°C
  Flexing: -15°C to +70°C

Construction

• Conductor: Flexible Tinned Copper Conductor
• Insulation: Polyvinyl Chloride (PVC)
• Braiding: Tinned Copper Wire Braiding (TCWB)
• Outer Sheath: Polyvinyl Chloride (PVC)

Standards

• Generally to Ministry of Defence Standard DEF 61-12 PVC
  Part 4 for 7/0.2 conductors
  Part 5 for 16/0.2 conductors
