Defence Standard 61-12 Part 4 Cable LSZH

Description

These Multi-Core flexible cables are designed for high density wiring between components and within instruments and electronic equipment. They are extensively used in aircraft, process control systems, computers, data processors, military vehicles and military

Key Features

•
  Voltage Rating 440 volts RMS, suitable for frequencies up to 1.6kHz
•
  Minimum Bending Radius 7.5 x overall diameter
•
  Temperature Limits Fixed: -30°C to +60°C
  Flexed: -15°C to +60°C

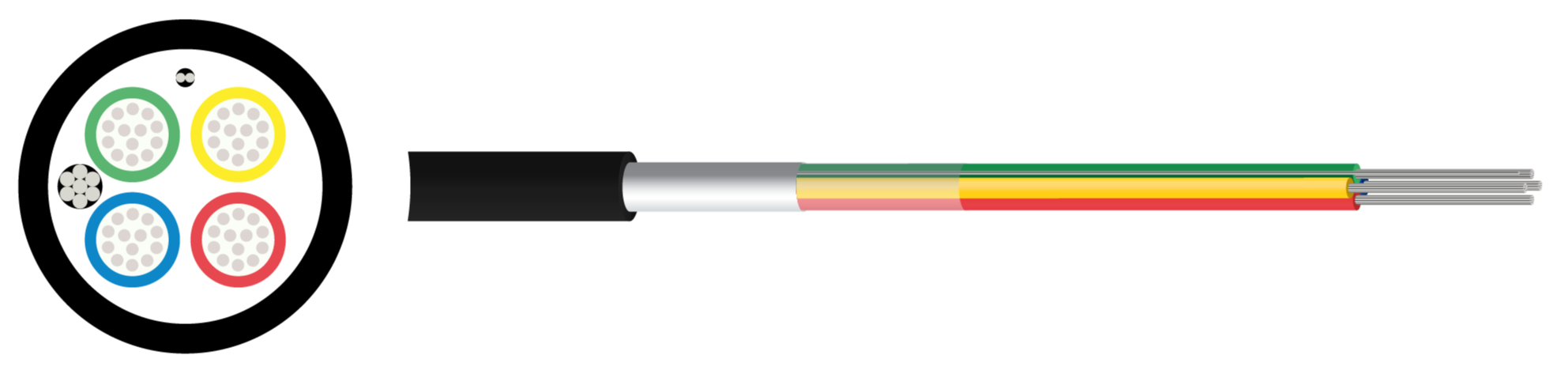

Construction

• Conductor: Class 2 stranded tinned copper
• Insulation: Low Smoke Zero Halogen (LSZH)
• Drain Wire: Tinned Copper
• Screen: Aluminium Foil
• Ripcord: Nylon
• Outer Sheath: Low Smoke Zero Halogen (LSZH)
• Sheath Colour: Black

Standards

• BS EN/IEC 61034-2
• BS EN/IEC 60754-1/2
• UL1581
• Generally to Ministry of Defence Standard DEF61-12 LSF:
  Part 4 for 7/0.2 Conductor
  Part 5 for 16/0.2 conductor
