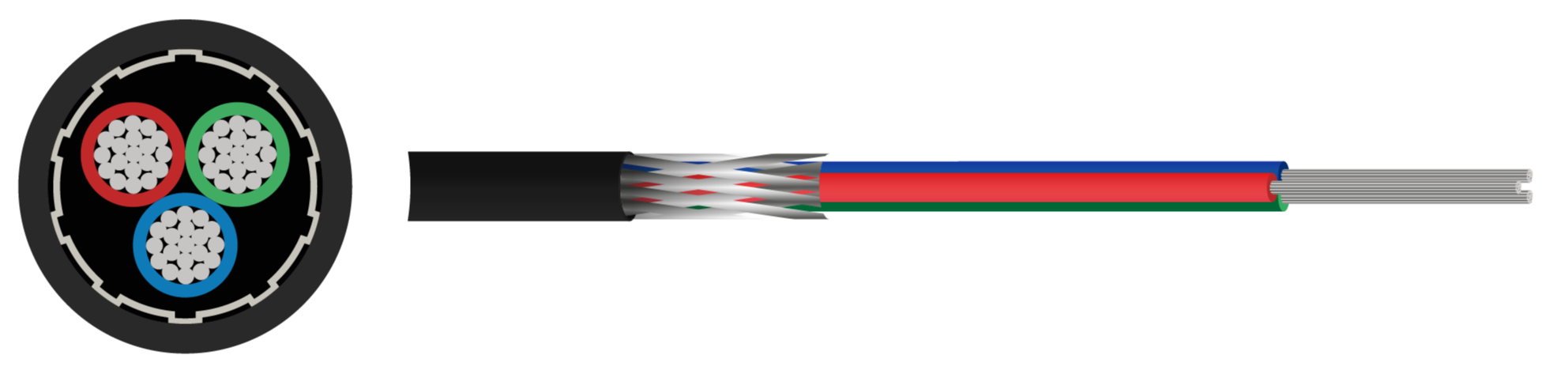

Defence Standard 61-12 Part 5 Cable

Description

These Multi-Core flexible cables are designed for high density wiring between components and within instruments and electronic equipment. They are extensively used in aircraft, process control systems, computers, data processors, military vehicles and military equipment.

Key Features

•
  Voltage Rating 440 volts RMS, suitable for frequencies up to 1.6kHz
•
  Minimum Bending Radius 7.5 x overall diameter
•
  Temperature Limits Fixed: -30°C to +70°C
  Flexing: -15°C to +70°C

Construction

• Conductor: Class 5 Flexible Tinned Copper
• Insulation: Polyvinyl Chloride (PVC)
• Braiding: Tinned Copper Wire Braiding (TCWB)
• Outer Sheath: Polyvinyl Chloride (PVC)
• Sheath Colour: Black

Standards

• Generally to Ministry of Defence Standard DEF 61-12 PVC
  Part 4 for 7/0.2 conductors
  Part 5 for 16/0.2 conductors
