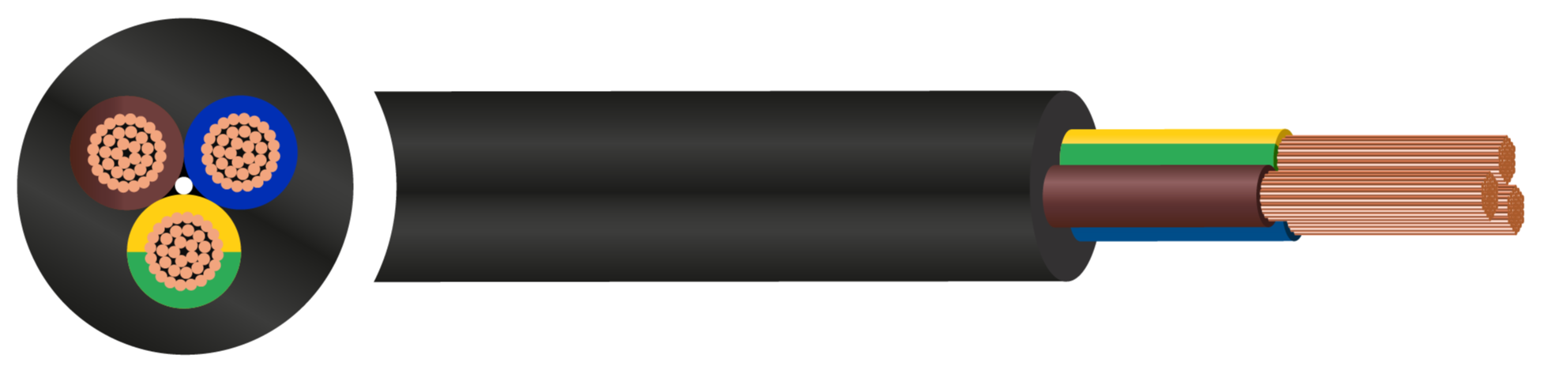

Heavy Duty V75 Flexible Cord 0.6/1kV Cable - 0.50mm² to 4mm²

Description

Heavy Duty V75 PVC Flexible Cords are robust, high-stress electrical supply cables rated at 0.6/1kV, designed to deliver heavy-duty power performance across demanding domestic, commercial, and industrial installations. Class 2 copper conductors, insulated with a heavy wall of V-75 Polyvinyl Chloride (PVC) in an extra-tough 4V-75 PVC outer protective jacket. The entire structural range is manufactured under AS/NZS 3191 and AS/NZS 1125 standards.

These cables are suited for installation in demanding internal environments. Due to their heavy-duty sheathing profile, they offer an exceptional degree of protection compared to light or ordinary alternatives, making them ideal for high-stress applications such as heavy commercial workshop machinery, construction site leads, plant machinery, and industrial kitchen appliances.

For safe installation, the cable must be managed carefully to ensure proper structural distribution during dynamic bending, maintaining a strict minimum bending radius of six times the overall cable diameter. Installers must utilize heavy-duty cord grip fittings, structural glands, or industrial protective bushings whenever routing the wire through entry ports into distribution enclosures or heavy machinery frames to mitigate chafing risks.

Key Features

•
  Voltage Rating 600/1000 Volts
•
  Minimum Bending Radius 6 x overall diameter
•
  Temperature Limits Maximum operating temperature: +75°C

Construction

• Conductor: Stranded copper conductor
• Insulation: Polyvinyl Chloride (PVC)
• Outer Sheath: Polyvinyl Chloride (PVC)
• Sheath Colour: Black or Orange

Standards

• AS/NZS 1125
• AS/NZS 3191
• AS/NZS 5000.1

Core Colours
