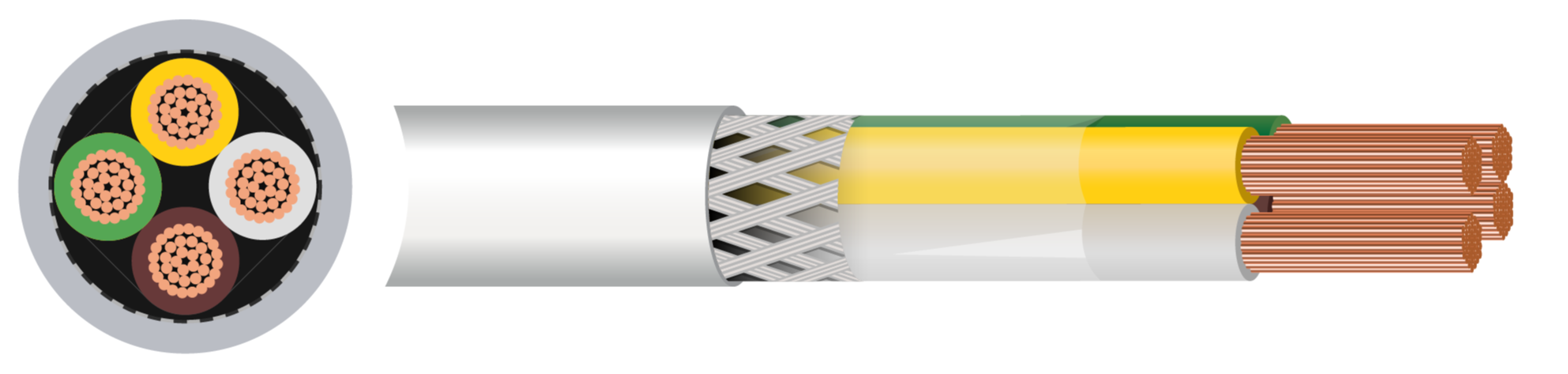

LiHCH Screened LSZH Cable

Description

LiHCH is a multi-core, screened signal and control cable engineered with flexible Class 5 copper conductors and low smoke zero halogen (LSZH) insulation and sheath. Its construction includes a tinned copper wire braid (TCWB) that serves as an electromagnetic shield, effectively suppressing signal interference in electronically dense environments. It has a minimum bend radius of 10 times the outer diameter and operating temperature range of -30°C to +70°C.

This cable is mainly used for low-voltage data transmission between electronic devices. It is an industry standard for industrial automation, robotics, and telecommunications, particularly in high-occupancy public infrastructure like airports and medical facilities. While the LSZH outer sheath is resistant to various oils and mechanical stress, it is specifically intended for indoor use in dry conditions.

LiHCH cable has high safety performance due to its construction; in a fire, the halogen-free compound in both the insulation and sheath ensures minimal smoke density and zero corrosive gas emission. This protects human life and sensitive electronic circuitry from halogen gas related damage. The integrated screen ensures high electromagnetic compatibility (EMC), allowing for clean signal paths even when routed in close proximity to power cables or high-frequency machinery.

Key Features

•
  Voltage Rating 250 Volts
•
  Minimum Bending Radius Fixed: 10 x Overall Diameter
  Flexing: 15 x Overall Diameter
•
  Flame Retardancy BS EN/IEC 60332-1-2
•
  Temperature Limits Temperature Range: -30°C to +70°C

Construction

• Conductor: Class 5 flexible stranded copper conductor
• Insulation: Low Smoke Zero Halogen (LSZH)
• Braiding: Tinned Copper Wire Braiding (TCWB)
• Outer Sheath: Low Smoke Zero Halogen (LSZH)
• Sheath Colour: Grey

Standards

• BS EN/IEC 60332-1-2
• BS EN/IEC 60754-1/2
• BS EN/IEC 60228

Core Colours
