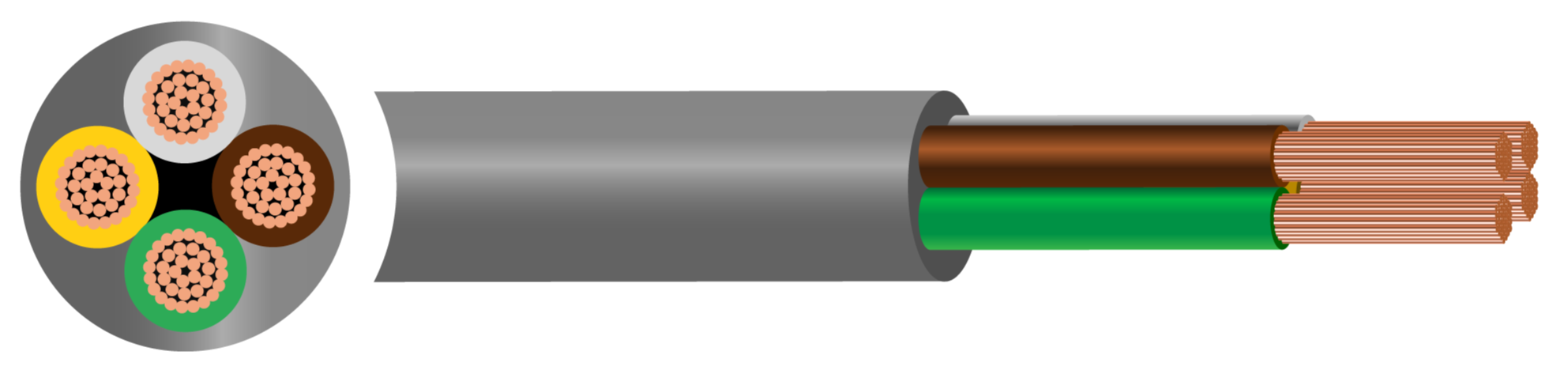

LiYY Cable

Description

LiYY is a multi-core, signal and control cable with Class 5 flexible copper conductors and a Polyvinyl Chloride (PVC) insulation and sheath. This cable is primarily used for low-frequency data transmission within computer systems, office equipment, and process control instrumentation. It is a standard choice for internal wiring in industrial plants, such as those in the packaging and wood processing sectors

Functionally, LiYY provides a wide operating thermal range, generally maintaining stability from -40°C to +80°C in static installations. It offers high flexibility and a reduced outer diameter compared to shielded variants. It is important to note that the PVC construction is intended for general-purpose applications where the absence of specific low-smoke or UV-resistant properties does not conflict with CPR 2017 regulations.

Key Features

•
  Voltage Rating 250 Volts
•
  Minimum Bending Radius Fixed: 5 x overall diameter
  Flexing: 8 x overall diameter
•
  Flame Retardancy BS EN/IEC 60332-1-2
•
  Temperature Limits Fixed: -30°C to +80°C
  Flexing: -5°C to +70°C


Construction

• Conductor: Class 5 flexible stranded copper conductor
• Insulation: Polyvinyl Chloride (PVC)
• Outer Sheath: Polyvinyl Chloride (PVC)
• Sheath Colour: Grey

Standards

• VDE 0812
• BS EN/IEC 60332-1
• BS EN/IEC 60228

Core Colours
