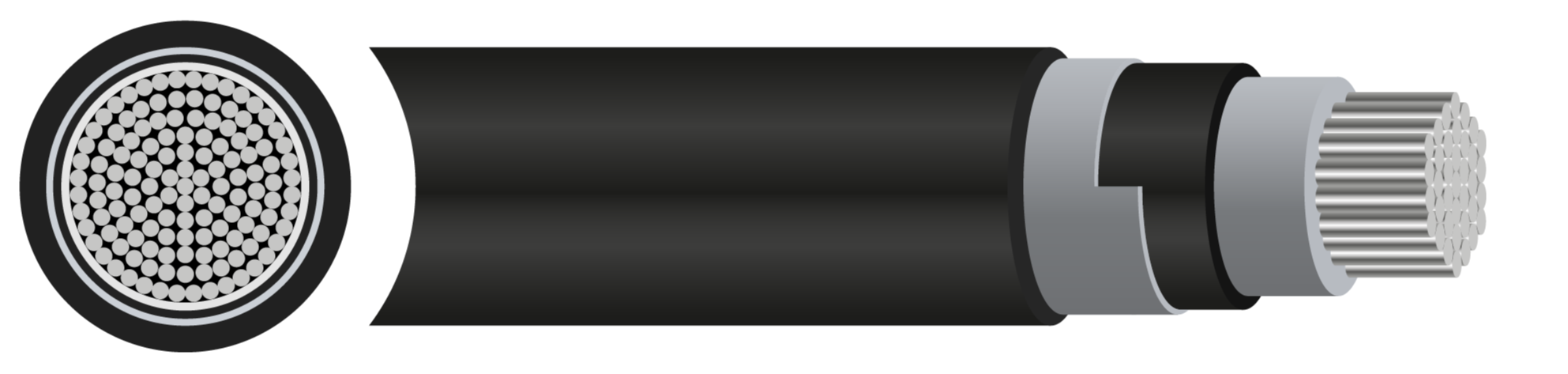

LV SOLAR SINGLE CORE XLPE ATA HDPE 1.8/3(3.6)kV AD8 - 70mm² to 630mm²

Description

Low voltage single core power cable with stranded compacted aluminium conductor, XLPE insulation, PVC bedding, aluminium tape armour and UV resistant HDPE outer sheath. This is a heavy-duty, low-voltage single-core power line engineered specifically for large-scale solar energy and photovoltaic systems.

The aluminium conductor is insulated with XLPE, capable of handling extreme heat, moisture, and chemical exposure. To withstand severe physical environments, the cable is wrapped in protective aluminium tape armour and encased in a tough high-density polyethylene outer jacket, which shields the conductor from soil pressure, rodent damage, and physical abrasion.

Manufactured to IEC 60228 and IEC 60502-1, this 1.8/3(3.6)kV cable is designed for power distribution applications and is available in sizes from 70mm² to 630mm². Suitable for external installation, cables can be installed on cable trays, within conduits or buried in ducts. The cable is water resistant to AD8 for installation where additional protection against water ingress is required.

Key Features

•
  Voltage Rating 1.8/3 (3.6)kV
•
  Minimum Bending Radius 20x Overall Diameter
•
  Temperature Limits Temperature Range: -15°C to +90°C

Construction

• Conductor: Class 2 Stranded Circular Compacted Aluminium Conductor
• Insulation: Cross Linked polyethylene (XLPE)
• Bedding: Polyvinyl Chloride (PVC)
• Armour: Aluminium Tape Armour (ATA)
• Outer Sheath: High Density Polyethylene (HDPE)
• Sheath Colour: Black

Standards

• IEC 60502-1
• BS EN/IEC 60228
