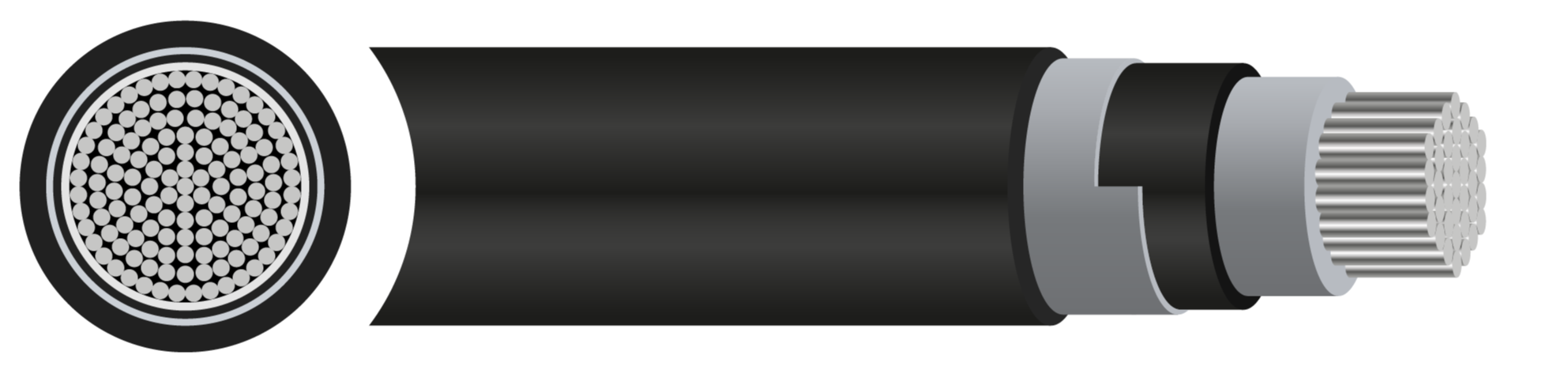

LV SOLAR SINGLE CORE XLPE ATA MDPE 1.8/3(3.6)kV AD7 - 70mm² to 630mm²

Description

Low voltage single core power cable with stranded compacted aluminium conductor, XLPE insulation, PVC bedding, aluminium tape armour and UV resistant MDPE outer sheath. This is a heavy-duty, low-voltage single-core power line engineered specifically for large-scale solar energy and photovoltaic systems.

The aluminium conductor is insulated with XLPE, capable of handling extreme heat, moisture, and chemical exposure. To withstand severe physical environments, the cable is wrapped in protective aluminium tape armour and encased in a tough high-density polyethylene outer jacket, which shields the conductor from soil pressure, rodent damage, and physical abrasion.

The cable is manufactured to IEC 60228 and IEC 60502-1,and rated at 1.8/3(3.6)kV. This cable is designed for power distribution applications and is available in sizes from 70mm² to 630mm². Suitable for external installation, cables can be installed on cable trays, within conduits or buried in ducts. The outer sheath is UV resistant and water resistant to AD7. An AD8 version with HDPE outer sheath is also available

Key Features

•
  Voltage Rating 1.8/3 (3.6)kV
•
  Minimum Bending Radius 20 x Overall Diameter
•
  Temperature Limits Temperature Range: -15°C to +90°C

Construction

• Conductor: Class 2 Stranded Circular Compacted Aluminium Conductor
• Insulation: Cross Linked polyethylene (XLPE)
• Bedding: Polyvinyl Chloride (PVC)
• Armour: Aluminium Tape Armour (ATA)
• Outer Sheath: Medium Density Polyethylene (MDPE)
• Sheath Colour: Black

Standards

• IEC 60502-1
• BS EN/IEC 60228
